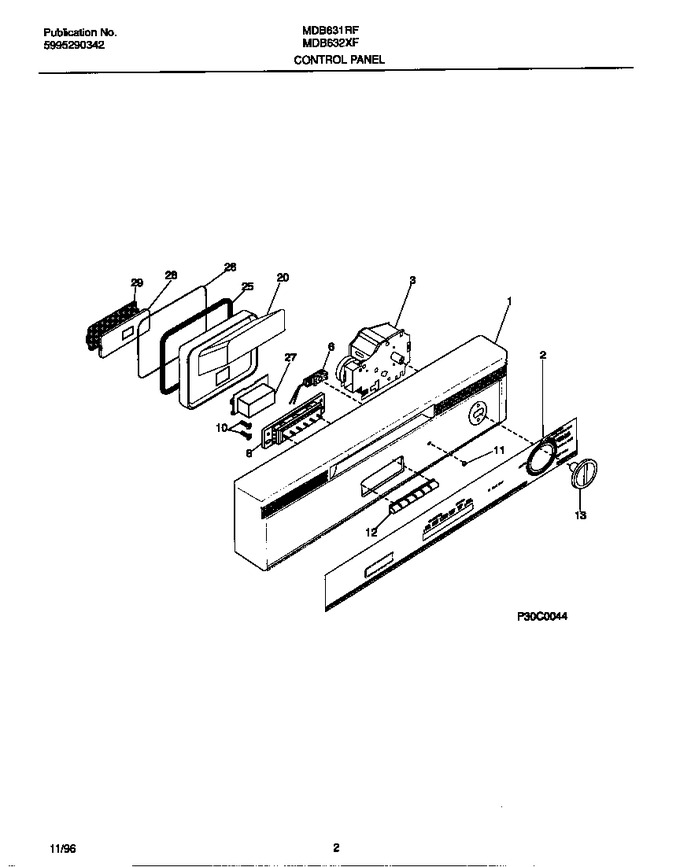

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222603		Panel-control, Black		Appelez-nous	-
2	154287703		Insert-control Pnl, Black		Appelez-nous	-
3	154301101		Timer				$ 70.09
6	5300809317		Light Assy		Appelez-nous	-
8	154215501		Switch-selector, 6 Button		Appelez-nous	-
10	154779601		Screw-switch Mtg, (2)   (Replaces: 5303318719)				$ 1.42
11	5300809036		Lens-light				$ 20.90
12	154239401		Pushbutton, Black		Appelez-nous	-
13	154239301		Knob-timer, Black				$ 48.46
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154287301		Seal-chamber		Appelez-nous	-
26	154240501		O-ring, Vent Dr Liner				$ 29.19
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*16800	154131203		Shield-timer		Appelez-nous	-
*16801	154200501		Screw, Pan Plask, 6-10 X 7/16		Appelez-nous	-
*16802	154242201		Shield-switch		Appelez-nous	-
*16803	154231101		Harness-wiring, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
