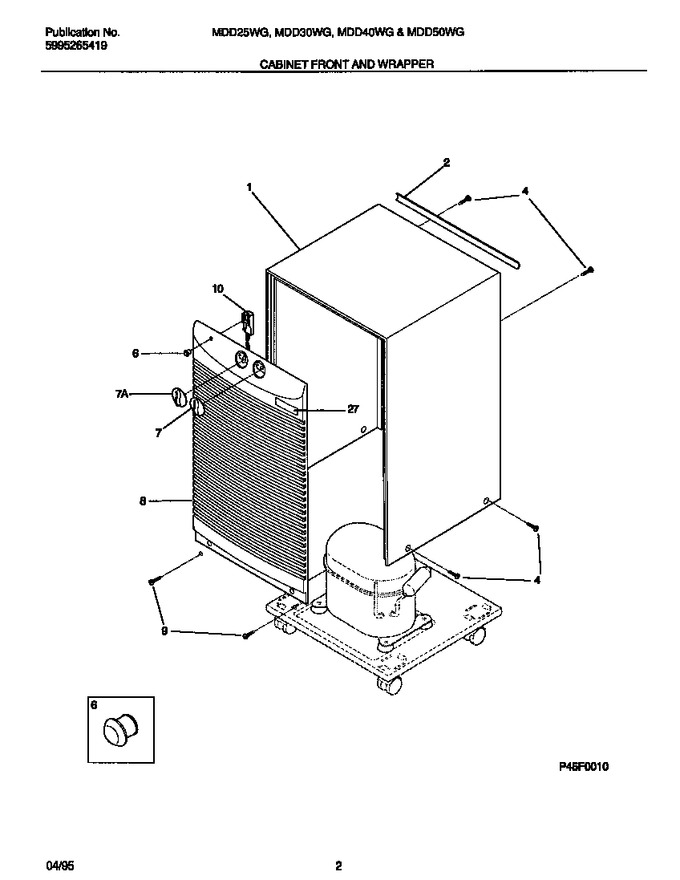

02 - Cabinet Front And Wrapper
03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303309857 | Wrapper |
|
- | |||||
| 2 | 3002958 | Trim |
|
- | |||||
| 4 | 5303015427 | Screw |
|
- | |||||
| 6 | 08012705 | Lens-light |
|
- | |||||
| 7 | 327300704 | Knob-fan |
|
- | |||||
| 7 | 327300703 | Knob-humidistat |
|
- | |||||
| 8 | 327602103 | Panel-front |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 10 | 5303925261 | Light |
|
- | |||||
| 27 | 327300006 | Nameplate |
|
- |
