Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 63001382 Tunnel Assy., Air 10 Appelez-nous -
2 63001447 Cover, Evaporator 10 Appelez-nous -
3 2256637 Screw   (Replaces: 63001036) 10 Special Order $ 11.60

4 63001385 Seal, Evaporator Cover 10 Appelez-nous -
5 63001386 Tray, Drip 10 Appelez-nous -
6 63001057 Motor, Evaporator Fan 10 Special Order $ 88.96

7 63001058 Bushing, Evaporator Fan 10 Appelez-nous -
8 63001062 Retainer, Evaporator Fan 10 Appelez-nous -
9 63001063 Bracket, Evaporator Fan 10 Appelez-nous -
10 WP489399 Screw   (Replaces: 63001104) 10 Special Order $ 6.26

11 63001060 Blade, Evaporator Fan 10 Appelez-nous -
12 63001061 Clip, Fan Blade 10 Appelez-nous -
13 WP60106-35 Heater, Defrost   (Replaces: 63001387) 10 In-Stock Immediately $ 99.32

14 63001050 Clip, Defrost Heater 10 Appelez-nous -
15 12002519 Kit, Evaporator 10 Appelez-nous -
16 63001052 Fuse 10 Appelez-nous -
17 63001053 Clip, Fuse 10 Appelez-nous -
18 63001388 Thermostat, Defrost (2 Wire) 10 Appelez-nous -
19 63001059 Wire Harness, Frz. 10 Appelez-nous -
20 63001066 Plug Button, Ice Maker 10 Special Order $ 18.02

21 63001065 Cap, Fill Tube 10 Appelez-nous -
22 63001064 Cap, I/m Wire Harness 10 Appelez-nous -
23 63001389 Shelf, Frz. 10 Appelez-nous -
24 WP841180A Tray, Ice   (Replaces: 63001068) 10 In-Stock Immediately $ 41.00

25 63001384 Seal, Evaporator Cover 10 Appelez-nous -
26 63001428 Cover, Fan 10 Appelez-nous -
27 63001429 Seal 10 Appelez-nous -
28 63001448 Receptacle, Bulb 10 Appelez-nous -
29 W11679940 Bulb, Light   (Replaces: 63001035) 10 In-Stock Immediately $ 10.17

30 63001449 Cover, Light 10 Appelez-nous -
31 63001450 Wire Harness, Light 10 Appelez-nous -
32 W11291138 Switch, Light   (Replaces: 63001030) 10 In-Stock Immediately $ 33.00


    View Diagram in Separate Window     Print Icon   Print Part List

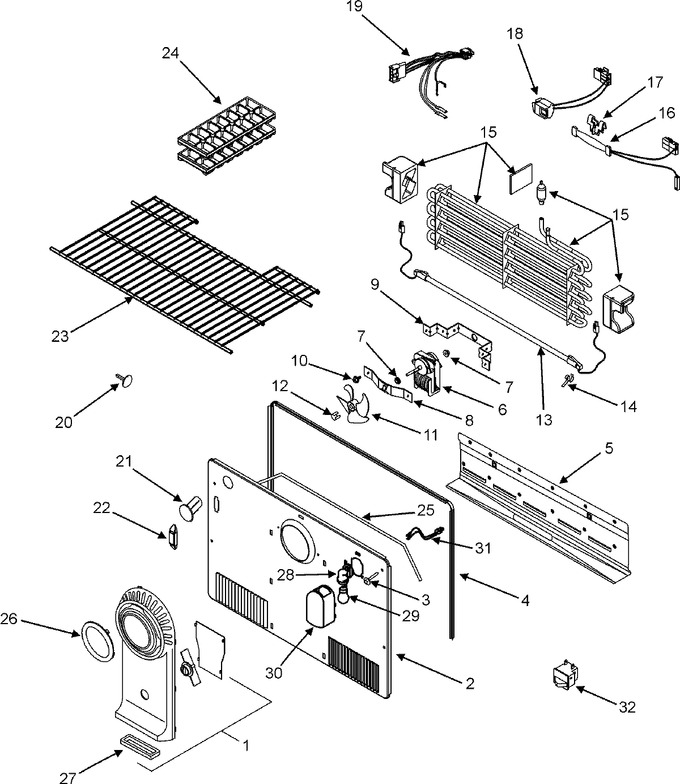

Diagram for MTB189AARW
