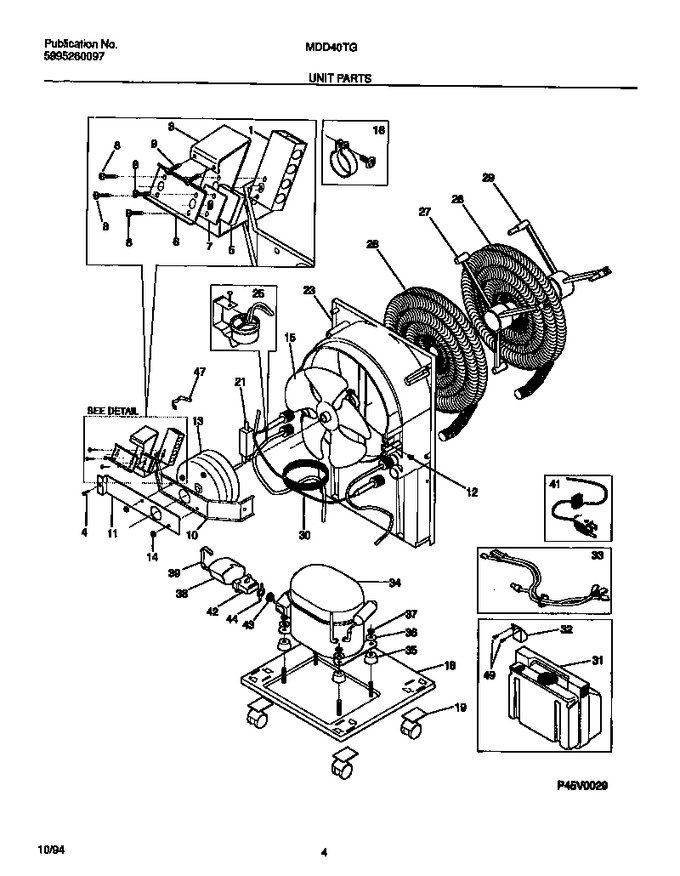

02 - Cabinet Front And Wrapper


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Humidistat Control				$ 142.17
3	5303211050		Bracket-control		Appelez-nous	-
4	5303015427		Screw		Appelez-nous	-
5	5303012345		Switch-on/off				$ 65.94
6	5303296824		Bracket-switch		Appelez-nous	-
7	3016093		Support-switch Shaft		Appelez-nous	-
8	5303007620		Screw				$ 9.31
9	3201861		Screw-bracket   (Replaces: 5303301590)				$ 0.76
10	5303296828		Bracket-motor		Appelez-nous	-
11	5303296829		Bracket-dampener		Appelez-nous	-
12	3002801		Screw		Appelez-nous	-
13	5303279144		Motor-fan		Appelez-nous	-
14	08007481		Nut				$ 5.81
15	5308016448		Fan Blade		Appelez-nous	-
16	5303303699		Clamp		Appelez-nous	-
18	5303303502		Base W/casters		Appelez-nous	-
19	5303275278		Caster				$ 30.40
21	5308016437		Switch- Bucket				$ 41.55
23	5303303501		Shroud		Appelez-nous	-
25	5303279149		Thermostat Defrost				$ 171.10
26	3017458		Condenser		Appelez-nous	-
27	08016455		Clamp-evaporator Inner		Appelez-nous	-
28	5303279277		Evaporator, W/clamps		Appelez-nous	-
29	08016454		Clamp-evaporator Outer		Appelez-nous	-
30	5308017120		Capillary Tube-cut To 30``		Appelez-nous	-
31	5303281288		Bucket W/ Float		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303279145		Harness		Appelez-nous	-
34	5303925101		Compressor		Appelez-nous	-
35	5303001777		Grommet-compressor, (4)		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	5303273999		Cover-terminal		Appelez-nous	-
39	5303274000		Strap-cover		Appelez-nous	-
41	5303279151		Cord-power		Appelez-nous	-
42	216594300		Relay   (Replaces: 3204486)				$ 28.92
43	5303273996		Overload				$ 66.05
44	5303273997		Clip-overload		Appelez-nous	-
47	327100001		Clip-switch To Shroud		Appelez-nous	-
49	5303296826		Clip-float, (2)		Appelez-nous	-
