SELECT A DIAGRAM
New Model Search:

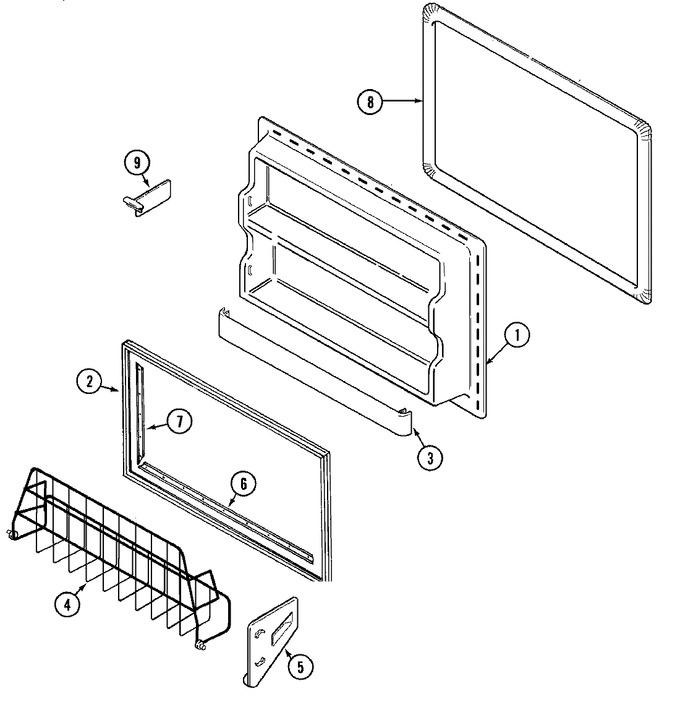

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65275-5 | Screw | 11 |
|
- | ||||
| 1 | 61002827 | Insert, Liner Support | 11 |
|
- | ||||
| 1 | 61002826 | Liner, Frz. Door | 11 |
|
- | ||||
| 1 | 61002556 | Insulation, Liner Support | 11 |
|
- | ||||
| 2 | WP61004007 | Seal, Frz. Door (wht) (Replaces: 61002054) | 11 |
|
Immediately | $ 211.46 | |||
| 3 | 61002265 | Front, Pick-off | 11 |
|
- | ||||
| 4 | 61002264 | Basket, Tilt-out | 11 |
|
- | ||||
| 5 | 61002263 | Stop, Basket (rt) | 11 |
|
- | ||||
| 5 | 61002262 | Stop, Basket (lt) | 11 |
|
- | ||||
| 6 | 61002597 | Retainer, Seal (top/bottom) | 11 |
|
- | ||||
| 7 | 61002381 | Retainer, Seal (side) | 11 |
|
- | ||||
| 8 | 61002829 | Seal, Secondary | 11 |
|
- | ||||
| 8 | 56686-5 | Clip, Secondary Seal | 11 |
|
- | ||||
| 9 | 61002274 | Organizer, Shelf | 11 |
|
- |
