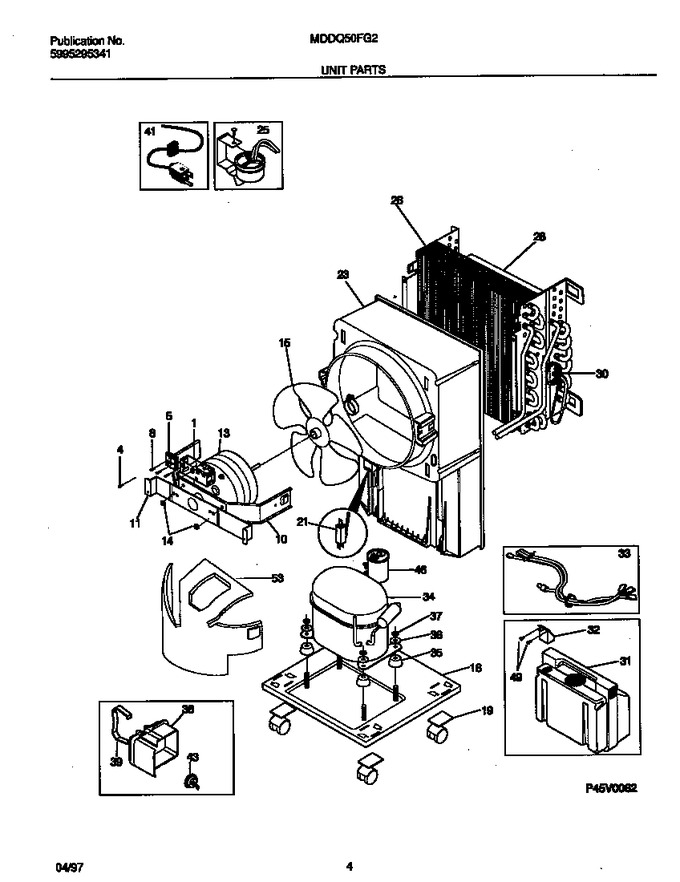

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303296823		Control-humidistat				$ 142.17
4	3017805		Screw, 8, 18ab X 3/8		Appelez-nous	-
5	5303012345		Switch-on/off				$ 65.94
8	5303007620		Screw				$ 9.31
10	327650901		Bracket-motor		Appelez-nous	-
11	327350001		Bracket, Cross		Appelez-nous	-
13	327650403		Motor-fan, 2 Speed				$ 350.96
14	08007481		Nut				$ 5.81
15	327650102		Fan Blade,with Clamp		Appelez-nous	-
18	5303303502		Base Plate, With Casters		Appelez-nous	-
19	5303275278		Caster				$ 30.40
21	5308016437		Switch-auto Shut Off, Bucket				$ 41.55
23	327650001		Shroud		Appelez-nous	-
25	5303323233		Thermostat-defrost				$ 191.63
26	327650603		Condenser		Appelez-nous	-
28	327650705		Evaporator		Appelez-nous	-
28	5303015427		Screw, Truss Head, 8-18ab X 0.47 (not Illustrated)		Appelez-nous	-
30	3203179		Capillary Tube		Appelez-nous	-
30	5303290357		Strainer (not Illustrated)		Appelez-nous	-
31	5303305671		Bucket, With Float		Appelez-nous	-
32	5303272520		Float		Appelez-nous	-
33	5303322587		Harness		Appelez-nous	-
34	5303323302		Compressor		Appelez-nous	-
35	5303001777		Grommet, Compressor		Appelez-nous	-
36	08002956		Washer-compressor		Appelez-nous	-
37	08012645		Nut-compressor		Appelez-nous	-
38	5303273999		Cover-terminal		Appelez-nous	-
39	5303274000		Strap-cover		Appelez-nous	-
41	5303279151		Cord-electric Power		Appelez-nous	-
43	5303322582		Overload Protector		Appelez-nous	-
46	5303001902		Capacitor		Appelez-nous	-
49	5303296826		Clip-float, (2)		Appelez-nous	-
53	327302202		Cover, Compressor		Appelez-nous	-
