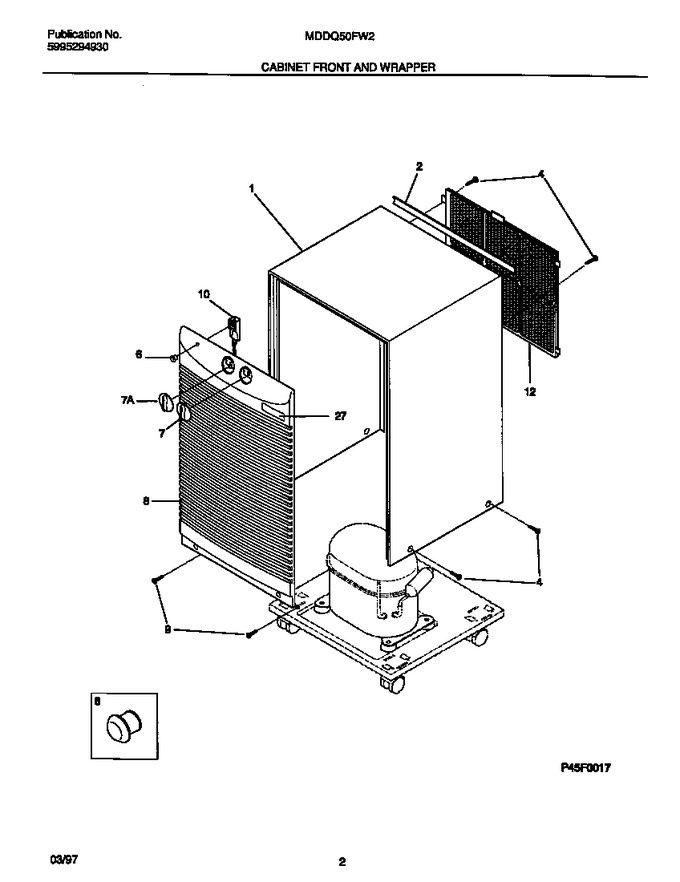

02 - Cabinet Front And Wrapper


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303322585		Cabinet		Appelez-nous	-
2	3002958		Trim		Appelez-nous	-
4	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
6	08012705		Lens, Lamp, Amber		Appelez-nous	-
7	327300704		Knob-control, Fan		Appelez-nous	-
7	327300703		Knob-control, Humidistat		Appelez-nous	-
8	327602103		Panel, Cabinet Front		Appelez-nous	-
9	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
10	5303300828		Light-indicator		Appelez-nous	-
12	327350601		Filter		Appelez-nous	-
27	327300009		Nameplate		Appelez-nous	-
