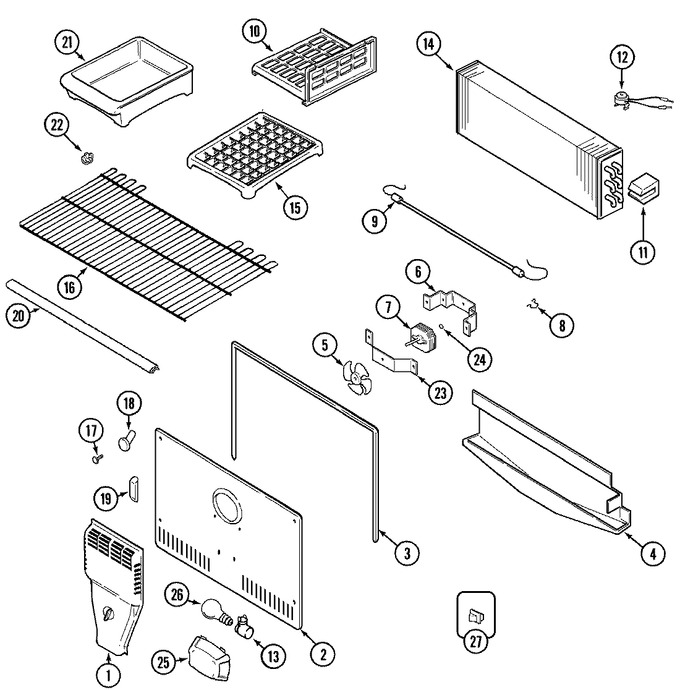

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61004655 | Tunnel, Air | 11 |
|
- | ||||
| 2 | WP489474 | Screw (Replaces: 61002429) | 11 |
|
Immediately | $ 7.17 | |||
| 2 | 61002354 | Cover, Evaporator | 11 |
|
- | ||||
| 3 | 61004545 | Seal, Evaporator Cover | 11 |
|
- | ||||
| 3 | 61002276 | Seal, Foam (ctr) | 11 |
|
- | ||||
| 4 | 61004832 | Barrier, Foil | 11 |
|
- | ||||
| 4 | 61004838 | Tray, Drip | 11 |
|
- | ||||
| 4 | 61002319 | Tray, Drip | 11 |
|
- | ||||
| 5 | 61001935 | Blade, Evaporator Fan | 11 |
|
- | ||||
| 6 | WP489399 | Screw (Replaces: 61001885) | 11 |
|
$ 6.26 | ||||
| 6 | 61001930 | Bracket, Evaporator Fan | 11 |
|
- | ||||
| 7 | WP61004888 | Motor, Evaporator Fan (Replaces: 61004888) | 11 |
|
Immediately | $ 104.99 | |||
| 8 | 61004834 | Clip, Defrost Heater | 11 |
|
- | ||||
| 9 | WP61002045 | Heater, Defrost (Replaces: 61002045) | 11 |
|
Immediately | $ 137.52 | |||
| 10 | 400019-1 | Screw | 11 |
|
- | ||||
| 10 | 61002268 | Shelf, Ice Tray | 11 |
|
- | ||||
| 10 | WPW10348409 | Screw (no.8 Ab) (Replaces: 61004314) | 11 |
|
Immediately | $ 6.98 | |||
| 11 | 61004835 | Support, Evaporator (lt) | 11 |
|
- | ||||
| 11 | 61004836 | Support, Evaporator (rt) | 11 |
|
- | ||||
| 12 | WP61005254 | Thermostat, Defrost (Replaces: 61004833) | 11 |
|
Immediately | $ 103.09 | |||
| 13 | 68974-3 | Receptacle, Bulb | 11 |
|
- | ||||
| 14 | 12001397 | Evap/heat Exch. Assy. 19` | 11 |
|
$ 295.90 | ||||
| 15 | WP61002140 | Tray, Ice (Replaces: 61002140) | 11 |
|
$ 18.23 | ||||
| 16 | 61002420 | Shelf, Frz. | 11 |
|
- | ||||
| 17 | 61005015 | Plug Button, Ice Maker | 11 |
|
- | ||||
| 18 | 61002026 | Cap, Fill Tube | 11 |
|
- | ||||
| 19 | 61002027 | Cap, I/m Wire Harness | 11 |
|
- | ||||
| 20 | 61002501 | Trim, Frz. Shelf----na | 11 |
|
- | ||||
| 21 | 61002267 | Pan, Ice | 11 |
|
- | ||||
| 22 | 61002143 | Support, Frz. Shelf (rear) | 11 |
|
- | ||||
| 22 | 61002142 | Support, Frz. Shelf (frt) | 11 |
|
- | ||||
| 23 | 61002234 | Retainer, Evaporator Fan | 11 |
|
- | ||||
| 23 | WP489399 | Screw (Replaces: 61001885) | 11 |
|
$ 6.26 | ||||
| 24 | 61002235 | Bushing, Evaporator Fan | 11 |
|
- | ||||
| 25 | 61002272 | Shield, Light | 11 |
|
- | ||||
| 26 | W11679940 | Bulb, Light (Replaces: 31956-1) | 11 |
|
Immediately | $ 10.17 | |||
| 27 | W11384469 | Switch, Light (Replaces: 66987-1) | 11 |
|
Immediately | $ 33.51 | |||
| 28 | 61005033 | Wire Harness, Frz. | 11 |
|
- |
