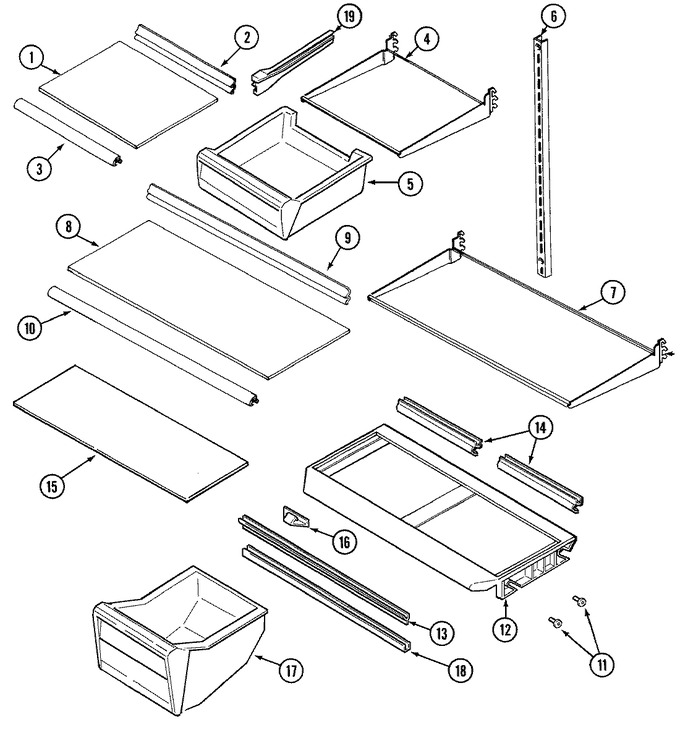

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002509		Glass, Split Shelf	10	Appelez-nous	-
2	61002474		Trim, Split Shelf (rear)	10	Appelez-nous	-
3	61002483		Trim, Shelf (frt)	10	Appelez-nous	-
4	61002485		Frame, Split Shelf	10	Appelez-nous	-
4	61002484		Frame, Meat Shelf	10	Appelez-nous	-
5	61002512		Pan, Meat	10	Appelez-nous	-
6	61002253		Rail, Cant. Shelf	10	Appelez-nous	-
6	WP67006908		Screw   (Replaces: 400022-1)	10		Immediately	$ 7.16
6	61002254		Rail, Shelf Support (lt/rt)	10	Appelez-nous	-
6	400037-28		Screw	10	Appelez-nous	-
7	61002491		Frame, Full Shelf	10	Appelez-nous	-
8	61002510		Glass, Full Shelf	10	Appelez-nous	-
9	61002489		Trim, Full Shelf (rear)	10	Appelez-nous	-
10	61002490		Trim, Full Shelf (frt)	10	Appelez-nous	-
11	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
11	67764-1		Support, Crisper Shelf	10			$ 8.05
12	61002511		Shelf, Crisper	10	Appelez-nous	-
13	61002389		Seal, Crisper Shelf (frt)	10	Appelez-nous	-
14	61002390		Seal, Crisper (rear)	10	Appelez-nous	-
15	61002459		Glass, Crisper Shelf	10			$ 91.02
16	61002187		Control, Humidity	10	Appelez-nous	-
17	61002515		Pan, Crisper	10	Appelez-nous	-
18	61002309		Rail, Crisper Support	10	Appelez-nous	-
19	61002471		Rail, Meat Pan (lt)	10	Appelez-nous	-
19	61002472		Rail, Meat Pan (rt)	10	Appelez-nous	-
