01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter

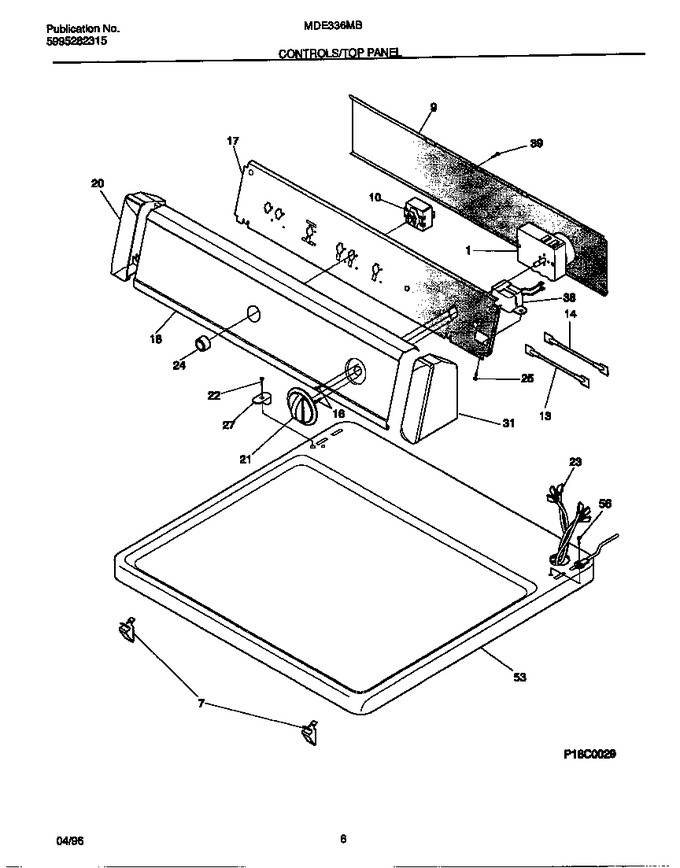

04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062300		Timer-dryer				$ 243.81
7	3205821		Clip-top Panel, To Front Panel			Immediately	$ 35.44
9	3205898		Backsheet-console		Appelez-nous	-
10	131048000		Switch-push/start		Appelez-nous	-
13	3205877		Resistor, 3.0k				$ 51.14
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
16	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
17	131297306		Bracket-controls		Appelez-nous	-
18	131346100		Panel-control		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	5303297893		Knob-timer				$ 43.73
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
23	131568500		Harness-dryer		Appelez-nous	-
24	131111500		Knob-start Switch, Black				$ 13.55
25	5303015671		Screw		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	5303291352		End Cap, Black, Rh				$ 56.49
38	5303210285		Buzzer				$ 65.78
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
53	131130404		Panel-top Almond		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
*00882	5303281103		Tie-harness		Appelez-nous	-
