View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer (3889xrb)
04 - Door/drawer (ser. Pre. 34)
05 - Oven
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

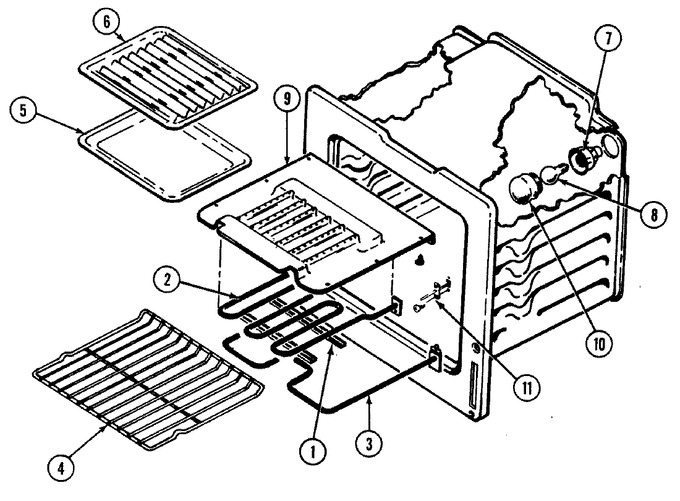

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (Replaces: 7101P290-60) |
|
Immediately | $ 12.62 | ||||
| 1 | 3807F387-45 | Support, Broil Element |
|
- | |||||
| 1 | W11772394 | Screw (Replaces: 7101P334-60) |
|
Immediately | $ 10.94 | ||||
| 2 | WPY04000059 | Element, Broil (Replaces: 7406P065-60) |
|
$ 159.00 | |||||
| 3 | 7406P084-60 | Element, Bake |
|
- | |||||
| 4 | WPW10282492 | Rack----na (Replaces: 7801P039-60) |
|
Immediately | $ 65.15 | ||||
| 5 | Y3401F02019 | Pan, Broil |
|
- | |||||
| 6 | Y3413F01619 | Insert, Broil Pan |
|
- | |||||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) |
|
Immediately | $ 66.10 | ||||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 9 | 3601F202-45 | Baffle. Broil |
|
- | |||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) |
|
Immediately | $ 71.93 | ||||
| 11 | 12001655 | Probe, Oven Sensor (Replaces: 7430P009-60) |
|
Immediately | $ 41.01 |
