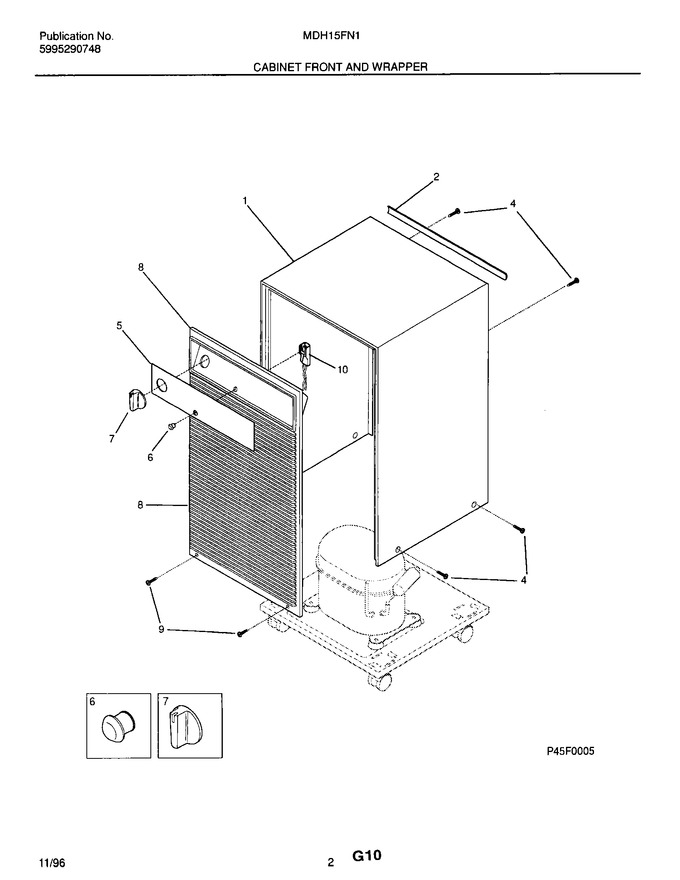

03 - Cabinet Front And Wrapper


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304135		Wrapper		Appelez-nous	-
2	3002958		Trim		Appelez-nous	-
4	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
5	5303275930		Dial Plate		Appelez-nous	-
6	08012705		Lens, Lamp, Amber		Appelez-nous	-
7	5303284039		Knob-control		Appelez-nous	-
8	5303322112		Panel-front		Appelez-nous	-
9	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
10	5303300854		Light		Appelez-nous	-
