SELECT A DIAGRAM

01 - Cover

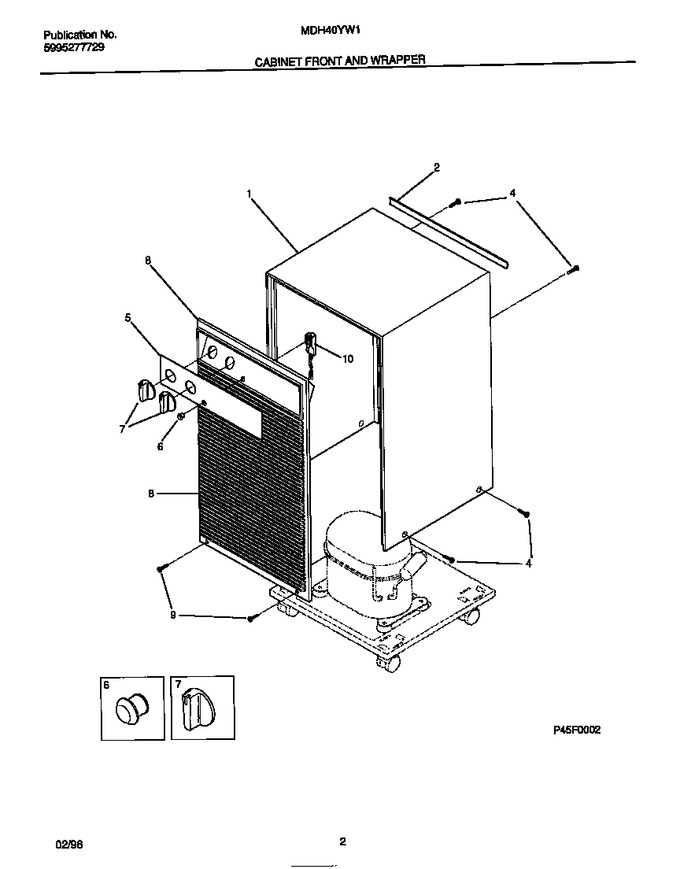

02 - Cabinet Front And Wrapper


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303882		Wrapper		Appelez-nous	-
2	3002958		Trim		Appelez-nous	-
4	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
5	327601904		Dial Plate		Appelez-nous	-
6	08012705		Lens-light		Appelez-nous	-
7	5303017300		Knob-control		Appelez-nous	-
8	5303317849		Panel-front		Appelez-nous	-
9	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
10	5303300841		Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
