SELECT A DIAGRAM

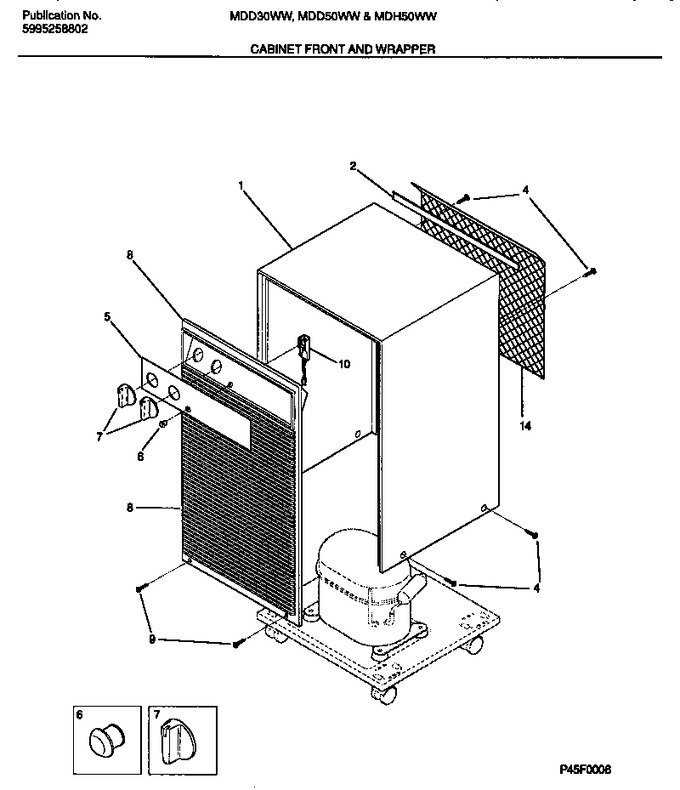

02 - Cabinet Front And Wrapper
03 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303304135 | Wrapper |
|
- | |||||
| 4 | 5303015427 | Screw |
|
- | |||||
| 5 | 327601903 | Dial Plate |
|
- | |||||
| 6 | 08012705 | Lens-light |
|
- | |||||
| 7 | 5303017300 | Knob-control |
|
- | |||||
| 8 | 5303300839 | Panel-front |
|
- | |||||
| 9 | 5303271346 | Screw-front |
|
- | |||||
| 10 | 5303925261 | Light |
|
- | |||||
| 14 | 3015194 | Grille-rear |
|
- |
