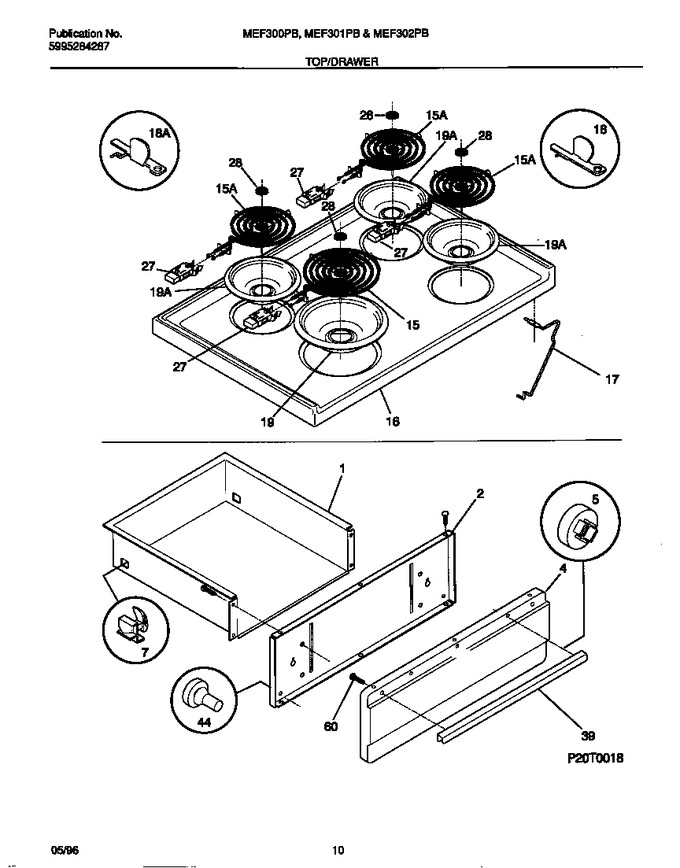

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
4	316021113		Screw-drawer Pnl (not Illustrated)		Appelez-nous	-
5	316089600		Spacer-handle, (2)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
16	3051380		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*30172	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*30173	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
