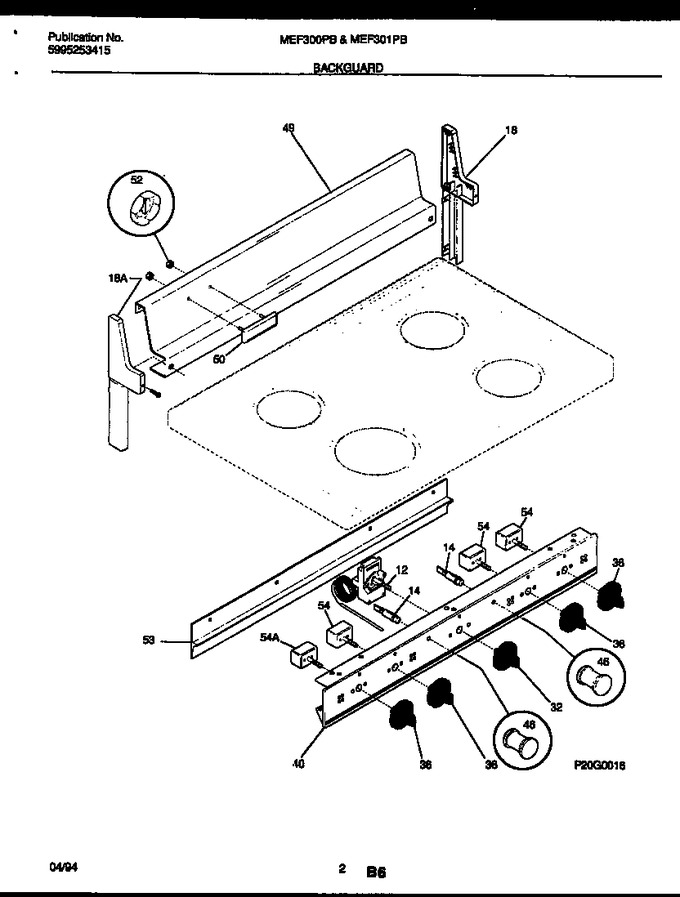

02 - Backguard
03 - Body Parts
05 - Cooktop And Drawer Parts
06 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5303210266 | Thermostat-oven |
|
- | |||||
| 14 | 5303210270 | Light/lamp, Indicator, Red, 250 V, (2) |
|
- | |||||
| 18 | 3202802 | End Cap,black ,rh |
|
- | |||||
| 32 | 5303288321 | Knob-thermostat |
|
- | |||||
| 36 | 5303288320 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 316009221 | Panel-manifold |
|
- | |||||
| 46 | 316040200 | Lens-light/lamp, Indicator, Amber |
|
- | |||||
| 49 | 3051198 | Panel-backguard, Almond |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 53 | 3204623 | Shield-heat, Extrusion |
|
- | |||||
| 54 | 5303051540 | Switch-6`` Element |
|
- | |||||
| *97095 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *97095 | 5303280382 | Screw 8-18 X 1/2, Low Pro Hd Sqdr |
|
- | |||||
| 18A | 3202801 | End Cap,black ,lh |
|
- | |||||
| 54A | 5301313767 | Switch-8`` Element |
|
- |
