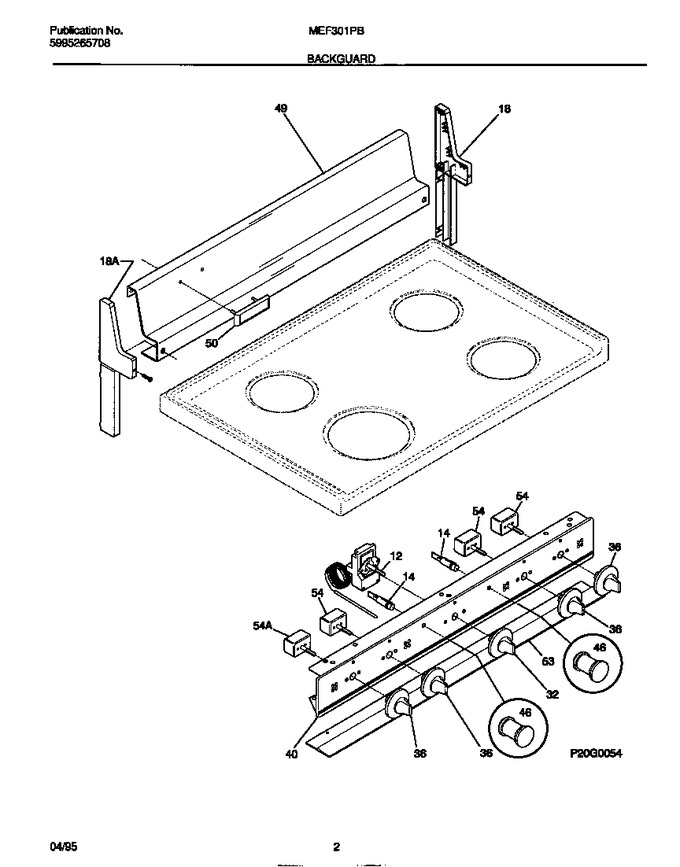

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303210266		Thermostat-oven		Appelez-nous	-
14	5303210270		Light/lamp, Indicator, Red, 250 V, (2)		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
32	5303288321		Knob-thermostat		Appelez-nous	-
36	5303288320		Knob-control, Infinite Sw		Appelez-nous	-
40	316009221		Panel-manifold		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
49	316073501		Panel-backguard, White		Appelez-nous	-
50	316067000		Bezel, Nameplate, Black		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
*28200	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*28201	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
