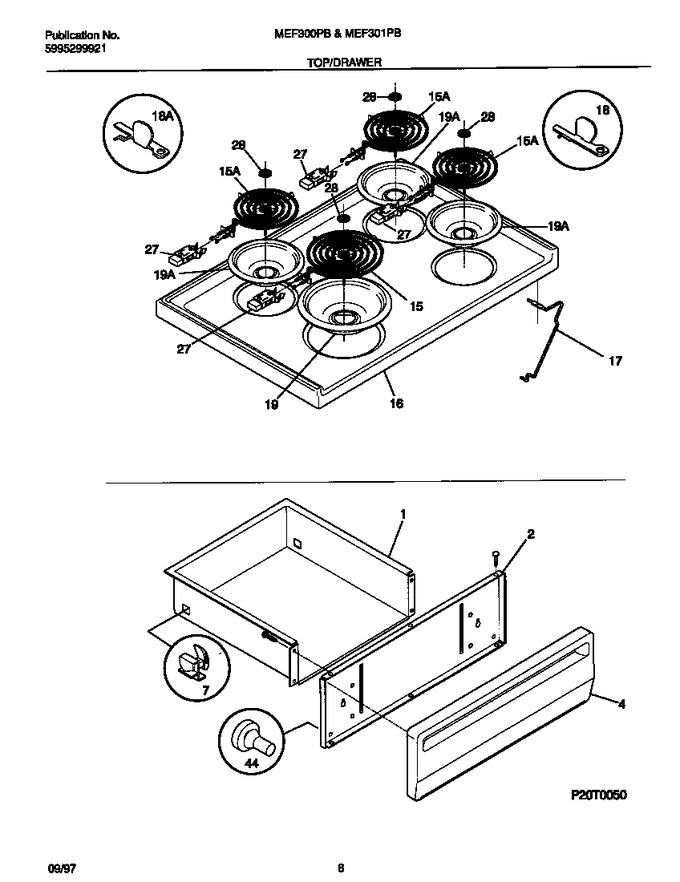

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
16	3051379		Main Top, White		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch, Chrome, (2)			Immediately	$ 9.85
19	316048414		Pan-surface Element, Small/6 Inch, Chrome, (2)			Immediately	$ 16.11
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*51053	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*51054	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*51055	316089600		Spacer-drawer, (2)		Appelez-nous	-
*51056	316105700		Bracket-drawer Panel, Rh		Appelez-nous	-
*51057	316105701		Bracket-drawer Panel, Lh		Appelez-nous	-
*51058	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*51059	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
17A	316066900		Rod-maintop Support				$ 66.31
17B	316089500		Screw, 10-16 X .486, Safety Valve, (4) (not Illustrated)				$ 13.46
