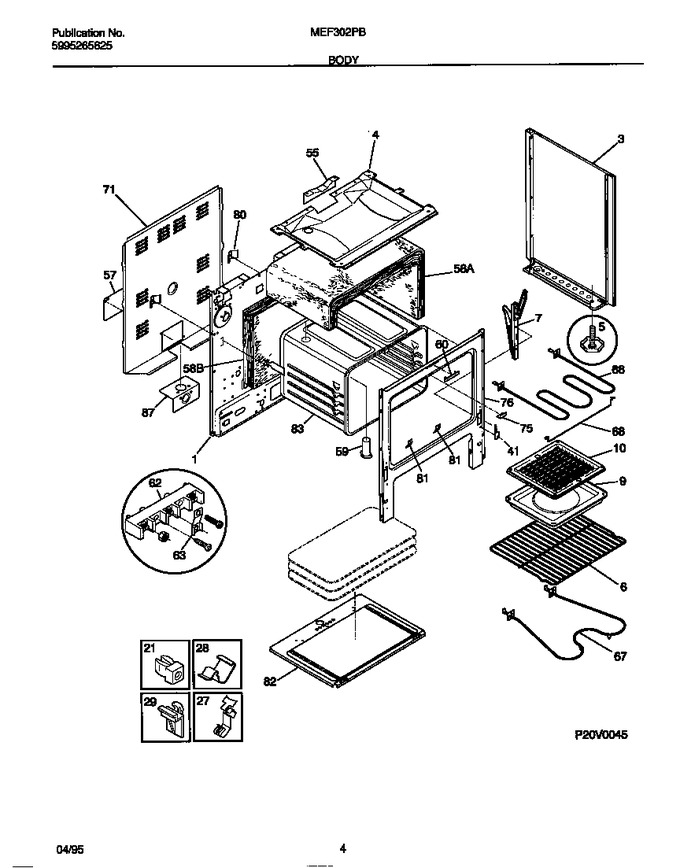

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316081006		Panel, Bodyside, Almond, Rh		Appelez-nous	-
3	316081007		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
6	5304531722		Rack-oven   (Replaces: 316067901)			Immediately	$ 51.05
7	316007001		Hinge,oven Door ,(2)				$ 234.55
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
27	5303011805		Clip, Thermo Bulb		Appelez-nous	-
28	3051367		Clip-wire		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
55	3051368		Shield-flue Cover		Appelez-nous	-
57	3203405		Cover-access		Appelez-nous	-
58	5303274967		Insulation-oven Back		Appelez-nous	-
58	316047702		Insulation, Oven Wrapper		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5303212739		Plate-ground Strap		Appelez-nous	-
66	5303051516		Element-broil				$ 189.23
67	5303051519		Element-bake			Immediately	$ 44.70
68	3205756		Support-element		Appelez-nous	-
71	316015803		Shield, Rear Wall, Rear Wall		Appelez-nous	-
75	3202082		Cover-oven Seam		Appelez-nous	-
76	316066702		Front-oven		Appelez-nous	-
80	3016281		Spring-oven Rear		Appelez-nous	-
81	316072700		Support-oven Bottom		Appelez-nous	-
82	316072600		Shield, Oven Bottom		Appelez-nous	-
83	316073001		Oven-liner, Comp		Appelez-nous	-
87	5303206618		Bracket-cable Mtg		Appelez-nous	-
*89402	316073400		Plate,weight ,(3)		Appelez-nous	-
*89403	316077000		Clip Oven Spacer		Appelez-nous	-
*89404	5303051099		Nut, Hex, 10-32		Appelez-nous	-
*89405	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
1A	316029406		Back-main		Appelez-nous	-
1B	316029410		Back-main		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14

    View Diagram in Separate Window       Print Part List
