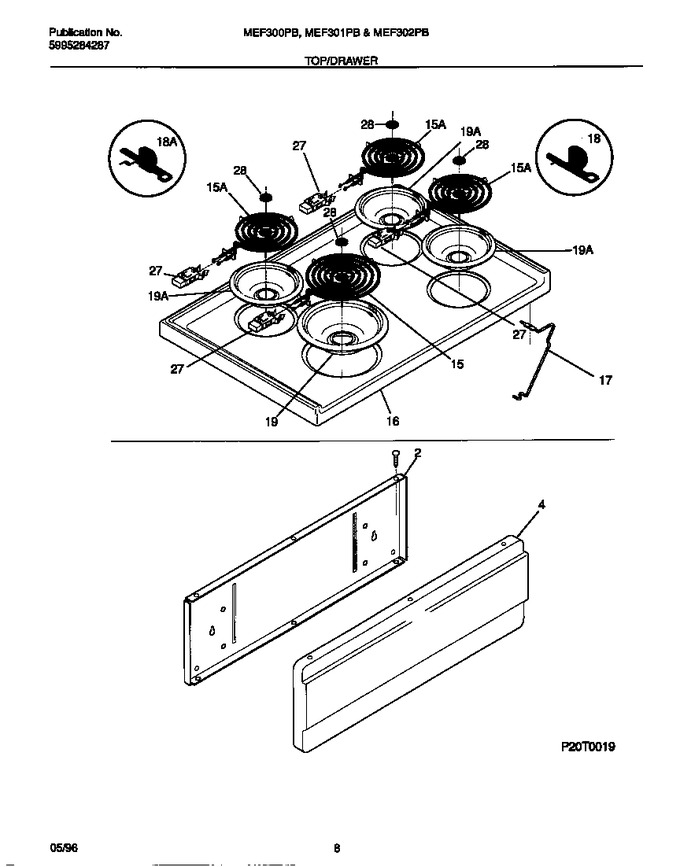

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	3051202		Panel-dummy, Almond		Appelez-nous	-
15	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
16	3051380		Main Top, Almond		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
*30170	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*30171	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
