SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer

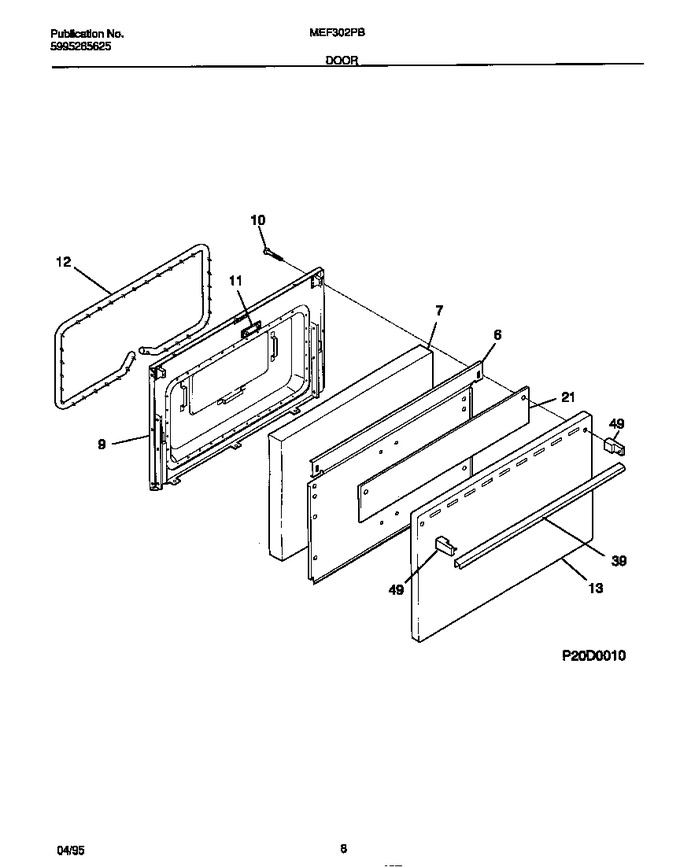

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303209317		Shield-insulation, Black		Appelez-nous	-
9	316066602		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
13	3202316		Panel,oven Door ,almond		Appelez-nous	-
21	5303211157		Plate, Door Weight		Appelez-nous	-
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
*44127	316071600		Plate Warning/caution		Appelez-nous	-
*44128	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*44129	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*44130	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*44131	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*44132	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
7A	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
7B	5303210607		Insulation, Oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
