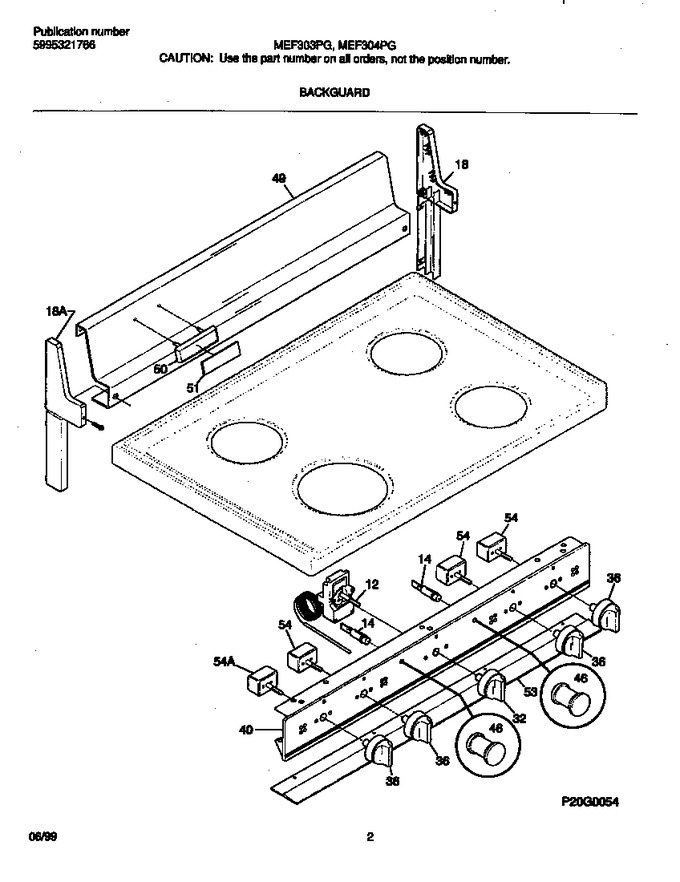

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316114600		Thermostat		Appelez-nous	-
14	5303210270		Light/lamp, Indicator, 250 V, (2)		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
18	3202801		End Cap,black ,lh		Appelez-nous	-
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob-control,white		Appelez-nous	-
40	316009221		Panel-manifold		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
49	316073501		Panel-backguard, White		Appelez-nous	-
50	316095422		Bezel-nameplate		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
*34040	316002671		Diagram-wiring		Appelez-nous	-
*34042	316003018		Instructions,installation		Appelez-nous	-
*34043	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*34044	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
