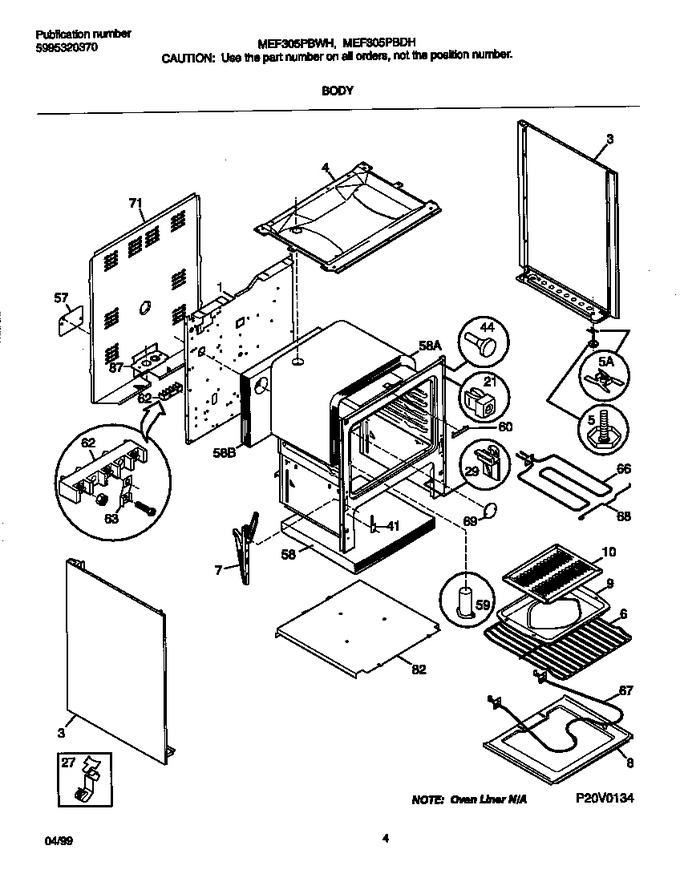

01 - Cover
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316080804 | Back-main, Short,dipped ,black |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 5 | 316107300 | Screw-leveling |
|
- | |||||
| 6 | 316067902 | Rack,oven |
|
Immediately | $ 103.10 | ||||
| 7 | 316007007 | Hinge-oven Door, (2) |
|
- | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 316073800 | Pan-broiler |
|
- | |||||
| 10 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 57 | 316081101 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 316073601 | Tube, Oven Vent |
|
- | |||||
| 60 | 316021109 | Screw,hex ,8-18 X 0.375 ,back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| 62 | 5303935061 | Terminal Block |
|
- | |||||
| 63 | 5301145190 | Plate=ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake,lower Oven (Replaces: 316075102) |
|
Immediately | $ 42.36 | ||||
| 68 | 316075300 | Support-element, Broil |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 71 | 316015805 | Shield-rear Wall |
|
- | |||||
| 82 | 5303289913 | Shield,insulation |
|
- | |||||
| 87 | 316081200 | Bracket,cable Mtg |
|
- | |||||
| *48926 | 3051367 | Clip-wire |
|
- | |||||
| *48927 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *48928 | 316519700 | Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold (Replaces: 316021108) |
|
$ 10.02 | |||||
| *48929 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *48931 | 316001559 | Harness-main |
|
- | |||||
| 170A | 316112005 | Anti-tip Bracket (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| 170B | 316116000 | Screw-anti Tip, 1.75`` Concrete |
|
$ 12.89 | |||||
| 3A | 316081034 | Panel-bodyside,white ,rh |
|
- | |||||
| 3B | 316081035 | Panel-bodyside,white ,lh |
|
- |
