SELECT A DIAGRAM

01 - Cover

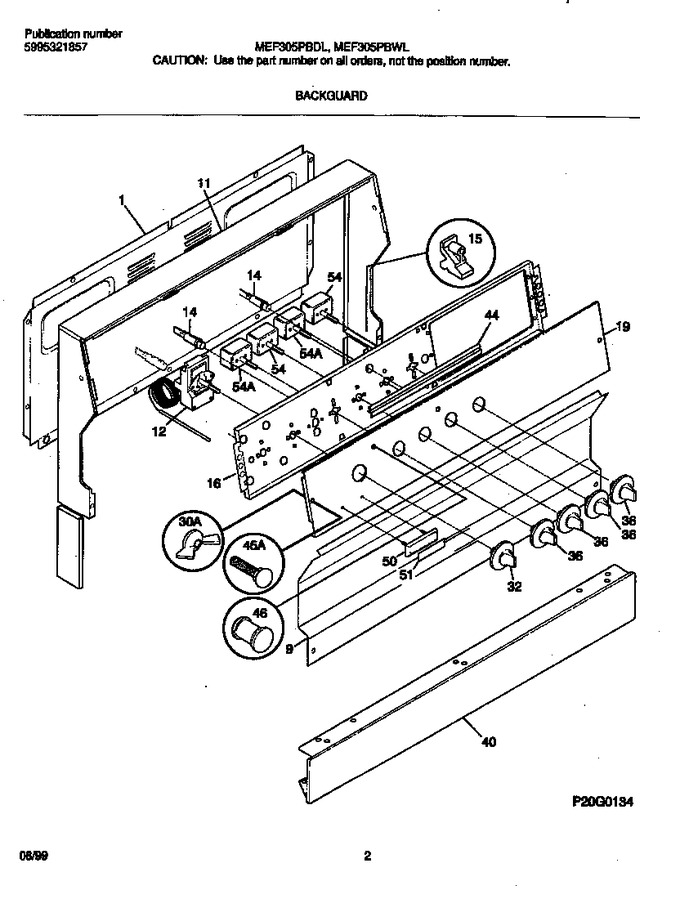

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043601		Trim-splasher, White		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034120		Panel-control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316123301		Knob-thermostat		Appelez-nous	-
36	316123303		Knob,infinite Switch ,black		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
60	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*77360	316002675		Diagram-wiring		Appelez-nous	-
*77361	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*77362	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*77363	316112500		Template, Anti-tip Bracket				$ 3.55
*77364	5303272555		Clip-backguard		Appelez-nous	-
12A	316095420		Nameplate,black		Appelez-nous	-
12B	5303212745		Thermostat-oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
