SELECT A DIAGRAM

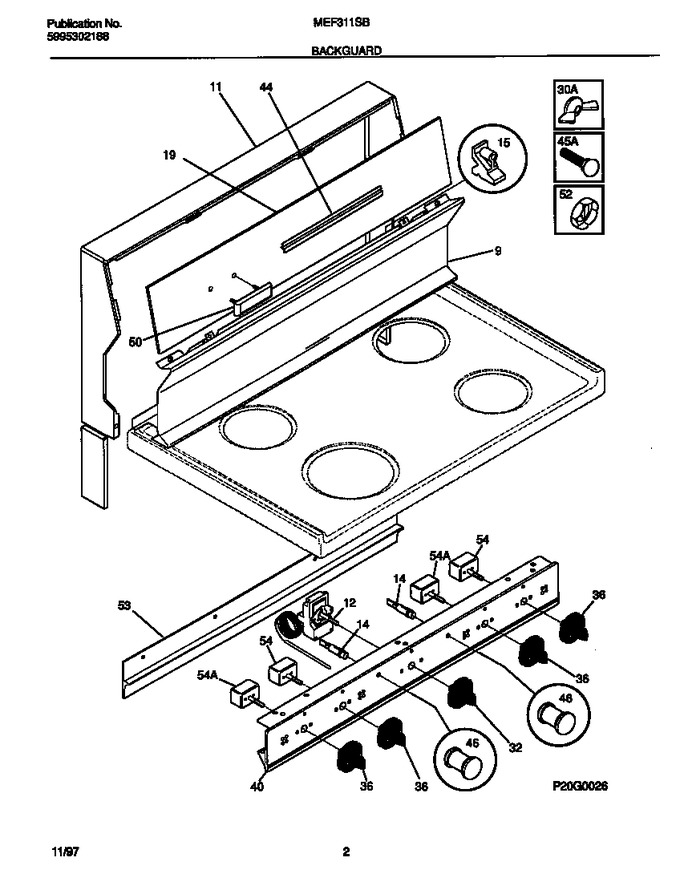

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043609		Trim-splasher, Almond, (3)		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	5303210266		Thermostat-oven		Appelez-nous	-
14	5303210270		Light/lamp, Indicator, 250 V, (2)		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034118		Panel-control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316009117		Knob-thermostat		Appelez-nous	-
36	5303288320		Knob-control, Infinite Switch		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
*27840	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*27841	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
