SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

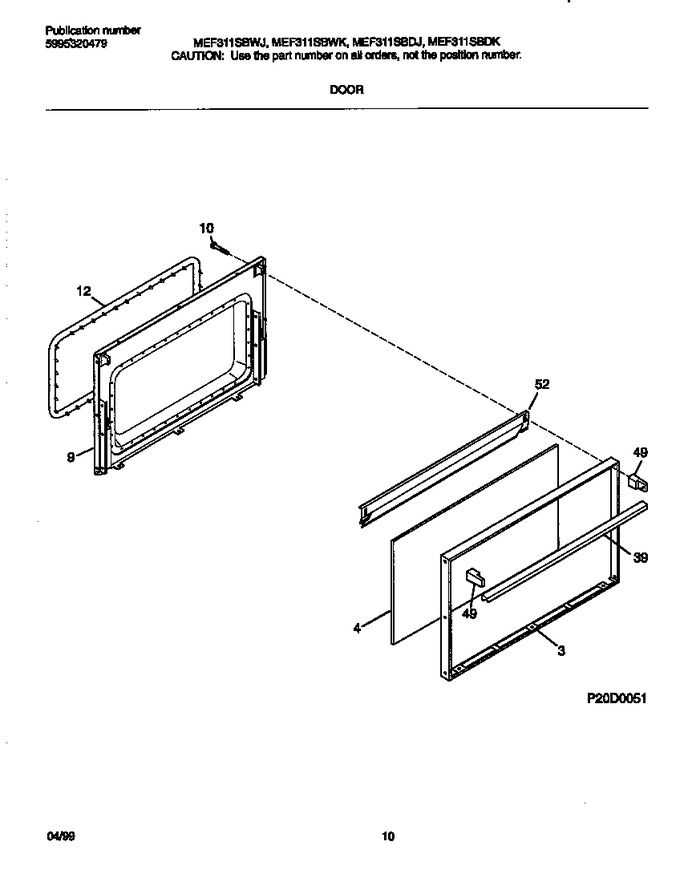

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*37383	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*37384	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*37385	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*37386	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*37387	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34

    View Diagram in Separate Window       Print Part List
