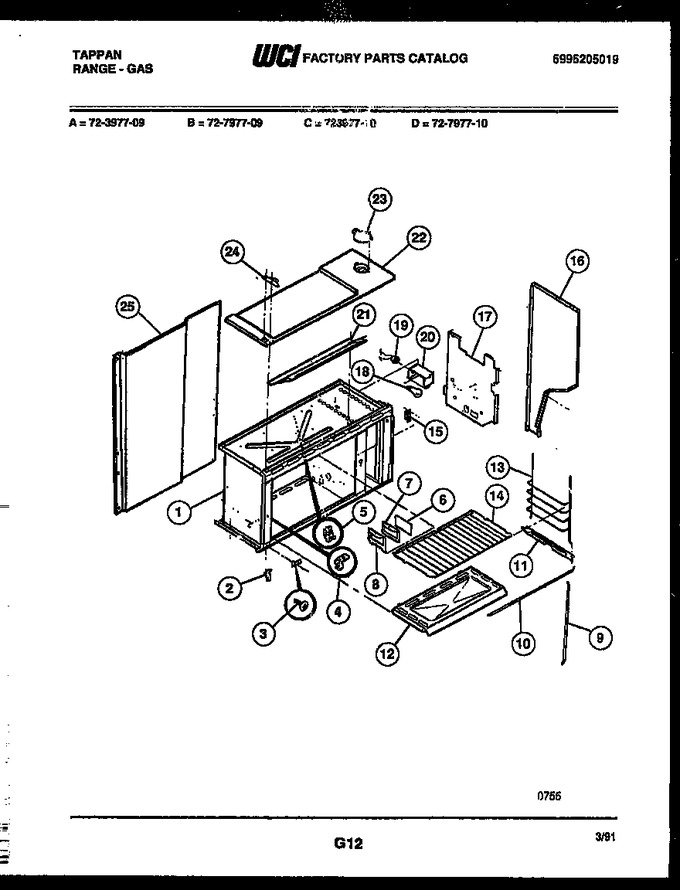

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303051166 | Hinge-door Assy |
|
- | |||||
| 3 | 636T070P02 | Screw-btm Hng |
|
- | |||||
| 4 | 08011665 | Plate Btm Hinge |
|
- | |||||
| 5 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 6 | 08011668 | Glass-ovn Lite Lens |
|
- | |||||
| 7 | 3200506 | Gskt Oven Light |
|
- | |||||
| 8 | 08011669 | Cover Oven Lens |
|
- | |||||
| 9 | 3201722 | Seal Door Side (2) |
|
- | |||||
| 10 | 3201721 | Seal-door Top & Btm (2) |
|
- | |||||
| 11 | 3131616 | Glide-oven Btm |
|
- | |||||
| 12 | 3200488 | Bottom-oven |
|
- | |||||
| 13 | 08011674 | Glide-oven Rack (2) |
|
- | |||||
| 14 | 08011675 | Rack-oven, Flat |
|
- | |||||
| 15 | 08011680 | Catch-door |
|
- | |||||
| 16 | 3051264 | Pnl B/s Right (almond) |
|
- | |||||
| 17 | 3131679 | Shield-wool U/o Side |
|
- | |||||
| 18 | 40A15 | Light Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 19 | 3014073 | Socket-oven Light |
|
- | |||||
| 20 | 08011684 | Box U/o Light |
|
- | |||||
| 21 | 3200505 | Flue Back U/o |
|
- | |||||
| 22 | 3131625 | Pnl-top U/o |
|
- | |||||
| 23 | 08067732 | Cover-outlet (hood) |
|
- | |||||
| 24 | 3131613 | Hinge-door-top |
|
- | |||||
| 25 | 3203082 | Back-main |
|
- | |||||
| *23684 | 3204440 | Alum-foil |
|
- | |||||
| *23684 | 3200500 | Brkt-connec Mtg |
|
- | |||||
| *23684 | 3200509 | Insul O/u Upper |
|
- | |||||
| *23684 | 3200511 | Insul Wool |
|
- | |||||
| *23684 | 3200519 | Retainer Oven Burn Upper |
|
- | |||||
| *23684 | 691T007P01 | Strike U/o Dr Align |
|
- | |||||
| *23684 | 3200497 | Insul-wool Splasher |
|
- | |||||
| *23684 | 3200498 | Insul-wool |
|
- | |||||
| 16A | 3051261 | Pnl B/s Left (almond) |
|
- |
