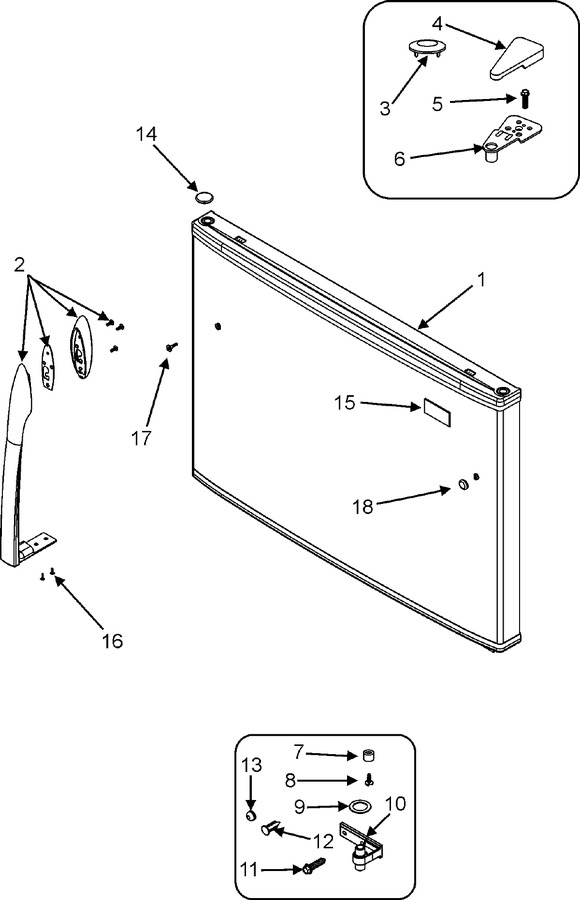

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001679		Door Assy. Frz(wht) !!	50			$ 265.64
2	63001436		Handle Assy., Door (wht)	50	Appelez-nous	-
3	63001110		Cap, Hinge (wht)	50	Appelez-nous	-
4	63001406		Cover, Upper Hinge (wht)	50	Appelez-nous	-
5	63001231		Screw	50	Appelez-nous	-
6	63001408		Hinge, Upper	50			$ 32.82
7	63001409		Stop, Door (wht)	50			$ 6.00
8	63001572		Screw	50	Appelez-nous	-
9	63001079		Washer, Hinge	50			$ 8.43
10	63001411		Hinge, Center (wht)	50			$ 22.68
11	63001234		Screw	50	Appelez-nous	-
12	63001413		Cap, Center Hinge (wht)	50	Appelez-nous	-
13	63001115		Cap, Hinge (wht)	50	Appelez-nous	-
14	63001107		Cap, Bushing (wht)	50	Appelez-nous	-
15	63001459		Nameplate (maytag)	50			$ 15.32
16	63001432		Screw	50			$ 4.83
17	63001435		Screw	50			$ 4.83
18	63001433		Cap, Handle Screw (wht)	50			$ 4.83
