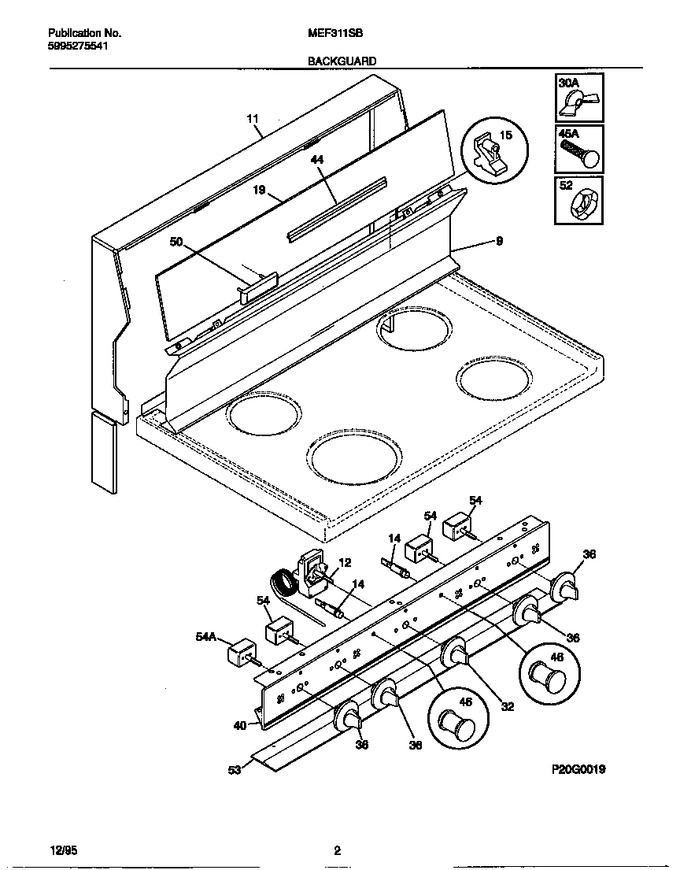

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043608		Trim-splasher, White		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	5303210266		Thermostat-oven		Appelez-nous	-
14	5303210270		Light/lamp, Indicator, Red, 250 V, (2)		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034107		Panel, Control, Metal		Appelez-nous	-
30	316056902		Bolt-fastener, Nylon		Appelez-nous	-
32	5303288321		Knob-thermostat		Appelez-nous	-
36	5303288320		Knob-control, Infinite Sw		Appelez-nous	-
40	316009221		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
50	316067003		Bezel-nameplate		Appelez-nous	-
52	316064300		Nut,nylon		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
*27760	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
