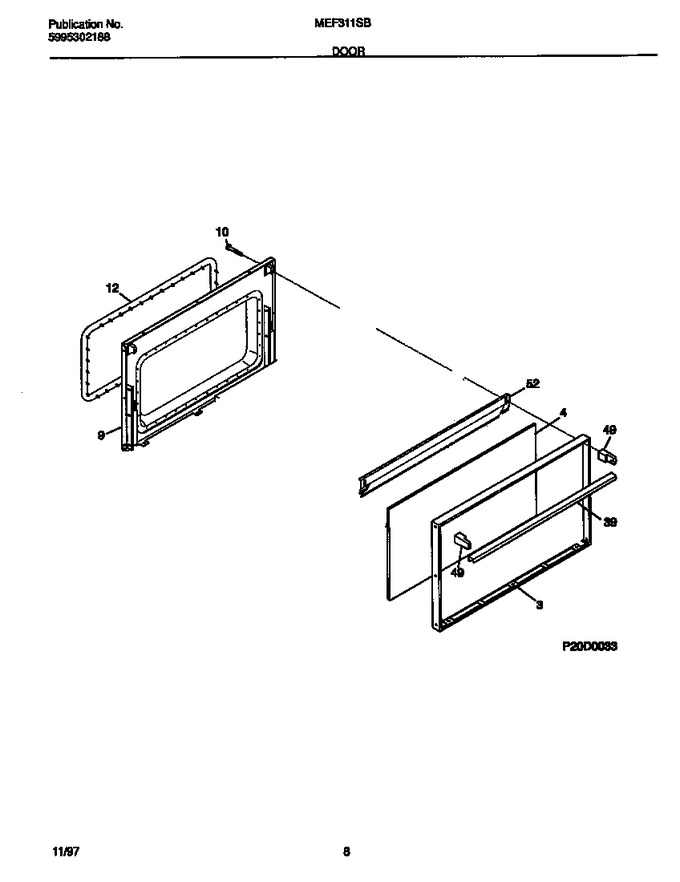

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*27854	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*27855	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*27856	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
39A	316020204		Handle-door, Black, Oven		Appelez-nous	-
39B	316008401		Washer, 3/4 X 1/4, Steel, (2) (not Illustrated)				$ 11.34
