SELECT A DIAGRAM

01 - Cover

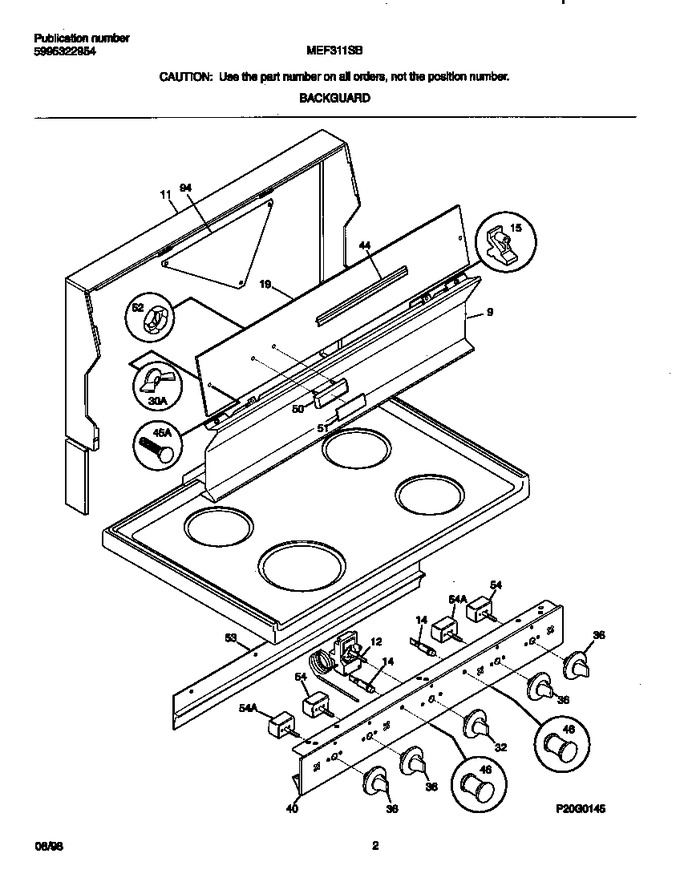

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316043608		Trim-splasher, White		Appelez-nous	-
11	316057002		Trim-wrapper		Appelez-nous	-
12	316114600		Thermostat		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034118		Panel-control, Metal		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob-control,white		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056902		Bolt-fastener, Nylon		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095419		Nameplate		Appelez-nous	-
53	3204623		Shield-heat, Extrusion		Appelez-nous	-
54	5301313767		Switch-8`` Element		Appelez-nous	-
54	5303051540		Switch-6`` Element		Appelez-nous	-
94	316111300		Stiffener-bg,metal ,zinc		Appelez-nous	-
*59440	316002674		Diagram-wiring		Appelez-nous	-
*59441	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*59442	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
