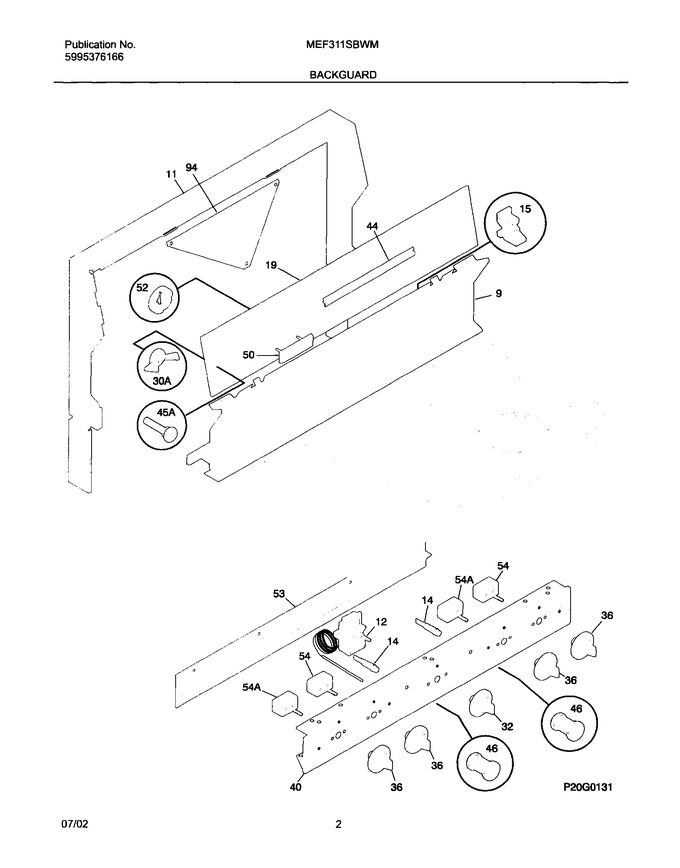

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316133504		Trim,splasher ,white ,lower		Appelez-nous	-
11	316057002		Trim,wrapper ,black		Appelez-nous	-
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034118		Panel-control, Metal		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob,control ,black		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095419		Nameplate,tappan		Appelez-nous	-
53	3204623		Extrusion-heat Shield		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
94	316111300		Stiffener,backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056902		Bolt,fastener ,nylon ,black		Appelez-nous	-
F12	316114600		Thermostat		Appelez-nous	-
F54	5303051540		Switch,element ,6``		Appelez-nous	-
F54A	5301313767		Switch,element ,8``		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
