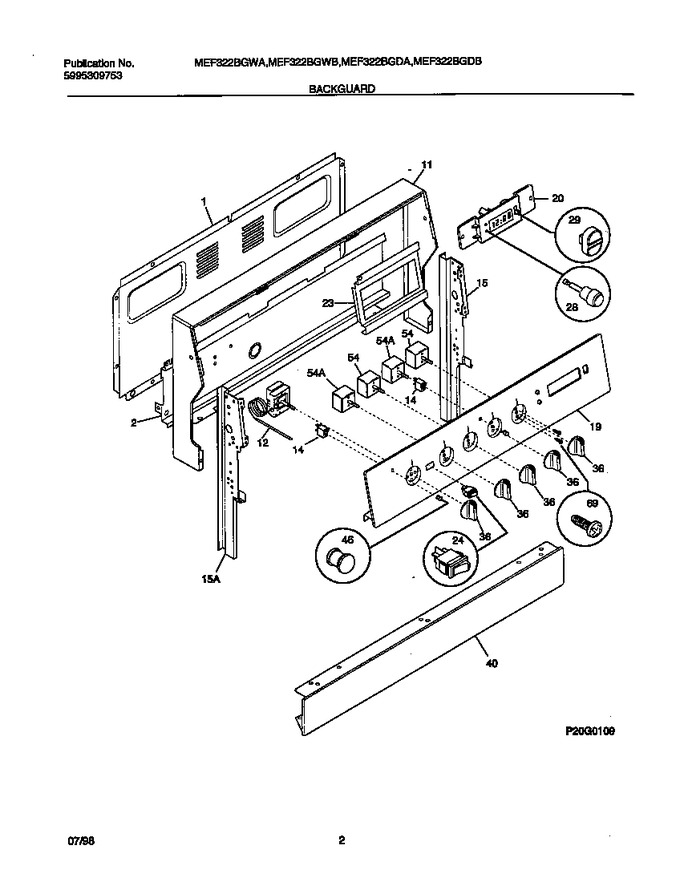

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,black		Appelez-nous	-
12	316032401		Thermostat-oven		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316076587		Panel-control,black		Appelez-nous	-
20	316096001		Clock/timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
29	5303272305		Button-selector, Clock/timer, Black				$ 38.80
40	316064009		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element, (2)   (Replaces: 316021501)			Immediately	$ 51.68
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*56480	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*56481	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*56482	316096900		Bezel,nameplate ,black				$ 15.38
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
14B	316022503		Light/lamp, Indicator, Yellow, 250 V			Immediately	$ 70.16
36A	316109600		Knob-thermostat		Appelez-nous	-
36B	316025108		Knob-control,black		Appelez-nous	-
