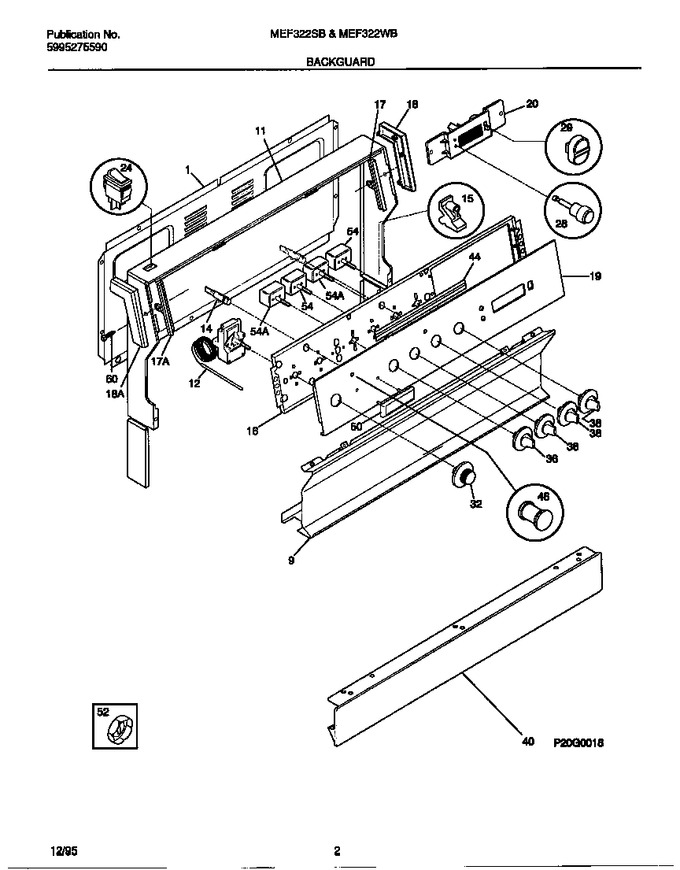

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043601		Trim-splasher, White		Appelez-nous	-
11	316083710		Trim-wrapper, White		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
17	316037402		Trim-glass Retainer		Appelez-nous	-
17	316037403		Trim-glass Retainer		Appelez-nous	-
18	3204747		End Cap, Chrome, Rh		Appelez-nous	-
18	3204746		End Cap, Chrome, Lh		Appelez-nous	-
19	316034528		Panel-control, Metal		Appelez-nous	-
20	5303272309		Clock/timer, Electronic		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock, White				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
32	316016819		Knob-thermostat		Appelez-nous	-
36	316016919		Knob-control,infinite Sw		Appelez-nous	-
40	316009289		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
50	316067002		Bezel, Nameplate		Appelez-nous	-
52	5303131215		Nut, Twist		Appelez-nous	-
54	5303285143		Switch, 8`` Element		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
60	5303293427		Screw, 6, 20 X 1/2, 5 Oval Head		Appelez-nous	-
*49840	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*49841	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*49842	5303272555		Clip-backguard		Appelez-nous	-
*49843	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
14A	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
14B	5308037896		Indicator Light				$ 39.75

    View Diagram in Separate Window       Print Part List
