SELECT A DIAGRAM

01 - Cover

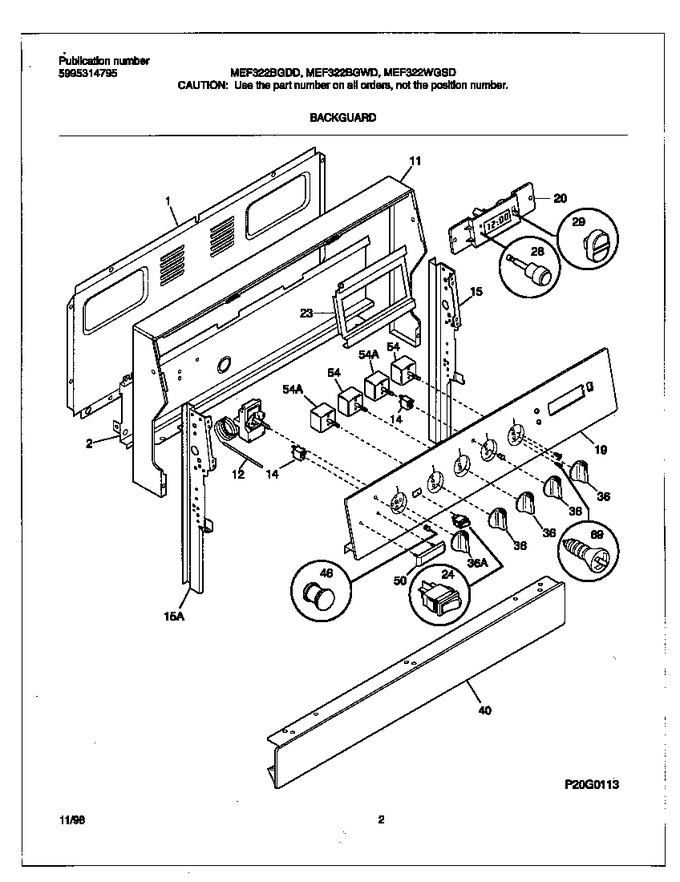

02 - Backguard


03 - Body


04 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061852		Trim-wrapper,textured ,white		Appelez-nous	-
12	316032403		Thermostat		Appelez-nous	-
14	316022504		Light-indicator		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076597		Panel-backguard,metal		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
28	316017303		Button-clock,white , Clock Set				$ 53.76
29	316028402		Button-selector, Clock/timer, White				$ 48.72
36	316109601		Knob-thermostat		Appelez-nous	-
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
40	316064030		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096901		Nameplate, White				$ 9.82
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*70120	316002675		Diagram-wiring		Appelez-nous	-
*70121	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*70122	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*70123	316112500		Template, Anti-tip Bracket				$ 3.55

    View Diagram in Separate Window       Print Part List
