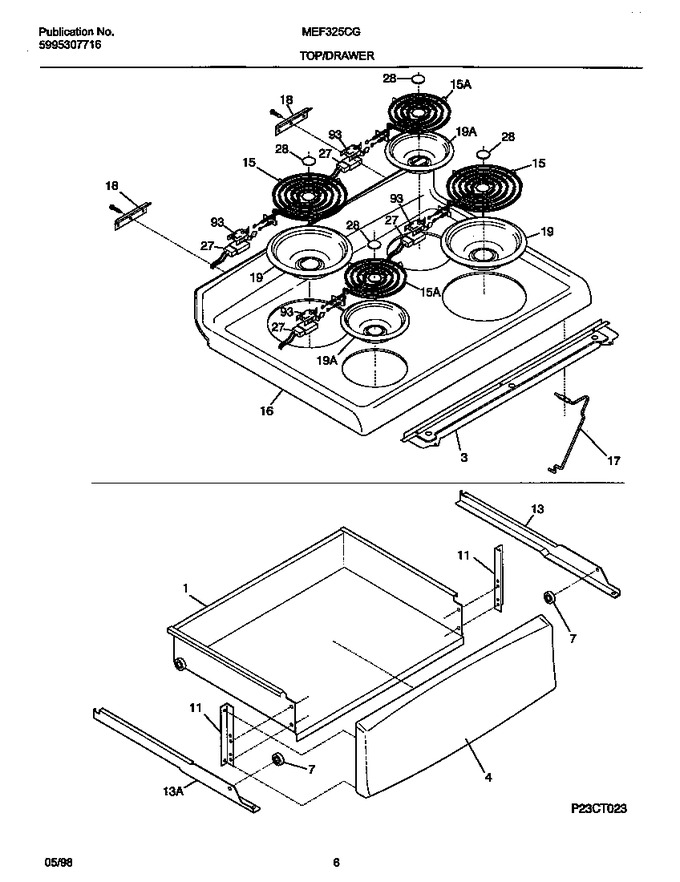

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505701 | Drawer-utility (Replaces: 318107103) |
|
Immediately | $ 143.39 | ||||
| 3 | 318144311 | Support-main Top |
|
- | |||||
| 4 | 318044301 | Panel-drawer,white |
|
- | |||||
| 7 | 5303324497 | Spacer |
|
- | |||||
| 11 | 318107500 | Bracket-support Drawer |
|
$ 21.85 | |||||
| 13 | 318018101 | Channel-drawer,lh |
|
$ 63.11 | |||||
| 13 | 318018100 | Channel-drawer,rh |
|
Immediately | $ 30.01 | ||||
| 15 | PS12-4BK | Element-surface, 1500w (Replaces: 5303309000) |
|
Immediately | $ 35.96 | ||||
| 15 | 316442303 | Element-surface, 2400w (Replaces: 318112300) |
|
Immediately | $ 207.45 | ||||
| 16 | 318065731 | Main Top |
|
- | |||||
| 17 | 318119100 | Rod-main Top |
|
$ 6.67 | |||||
| 18 | 318074400 | Hinge-main Top |
|
- | |||||
| 19 | 318067005 | Pan-burner,small |
|
- | |||||
| 19 | 318067004 | Pan-burner,large |
|
- | |||||
| 27 | RR500 | Terminal Block (Replaces: 5303323704) |
|
Immediately | $ 9.42 | ||||
| 28 | 5303301461 | Medallion, Surface Element |
|
- | |||||
| 93 | 318122501 | Bracket-terminal Block |
|
- | |||||
| *92807 | 5303131801 | Screw, 10 X 3/8 |
|
- |
