SELECT A DIAGRAM

01 - Compressor (mtb2456gew Rev 15)


02 - Compressor (rev 10)


03 - Controls


04 - Freezer Compartment


05 - Freezer Inner Door


06 - Freezer Outer Door


07 - Fresh Food Inner Door


08 - Fresh Food Outer Door


09 - Optional Ice Maker Kit-uki1500axx


10 - Shelves & Accessories


11 - Wiring Information

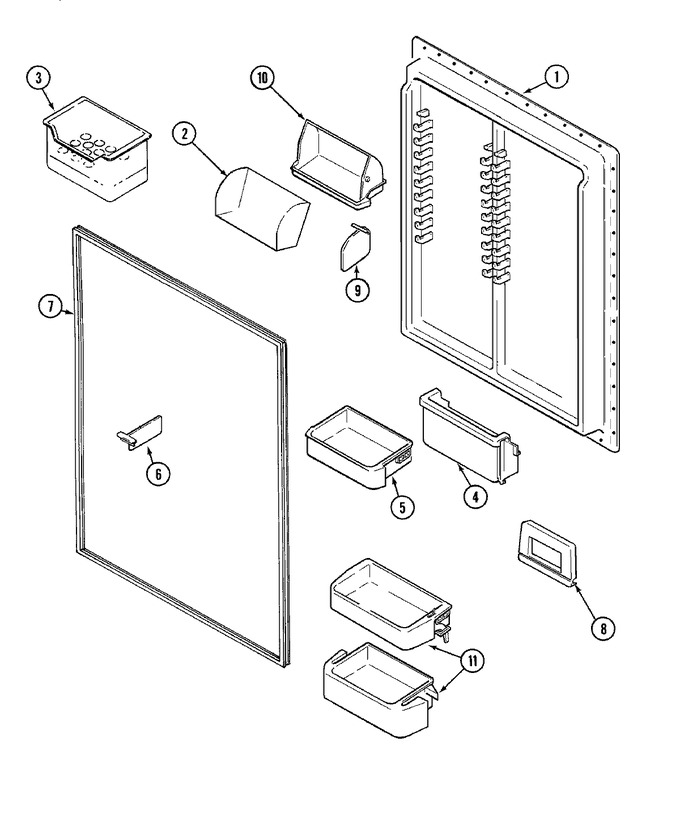

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61002742		Insert, Liner Support	10	Appelez-nous	-
1	61002741		Insert, Liner Support	10			$ 30.66
1	61002665		Liner, F.f. Door	10	Appelez-nous	-
1	61005388		Screw	10			$ 11.43
2	61002666		Door, Dairy	10	Appelez-nous	-
3	67215-2		Tray, Egg	10	Appelez-nous	-
4	61002667		Bucket, Tip Out	10	Appelez-nous	-
5	61005137		Shelf, Pick-off	10	Appelez-nous	-
6	61002274		Organizer, Shelf	10	Appelez-nous	-
7	WP61004010		Seal, F.f. Door (wht)   (Replaces: 61004010)	10			$ 296.04
8	61002273		Retainer, Bottle	10	Appelez-nous	-
9	61002760		Organizer, Dairy Compt.	10	Appelez-nous	-
10	61002668		Shelf, P.o. Dairy	10	Appelez-nous	-
11	61005433		Drawer Assy., Utility	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
