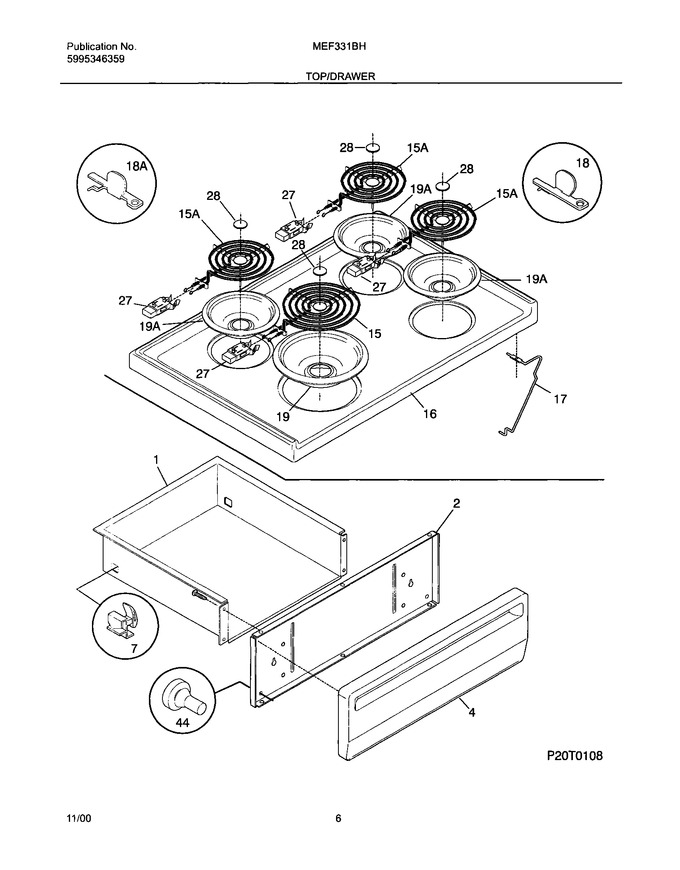

05 - Top/drawer


07 - Body


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	3051201		Panel-dummy, White		Appelez-nous	-
15	318198817		Element-surface,radiant ,small/6 Inch ,1200 W   (Replaces: 318178100)			Immediately	$ 192.78
16	316098103		Main Top, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099100		Channel-support,element ,galv Steel ,(2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface, 4 Hole		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099200		Bracket-support,chassis ,galv Steel		Appelez-nous	-
F15A	903118-9010		Element-surface,radiant ,large/8 Inch ,2100 W   (Replaces: 318178101)			Immediately	$ 236.18
F51	316105100		Light/lamp,hot Surface Ind ,assy		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316105700		Bracket-drawer Panel, Rh		Appelez-nous	-
NI	316105701		Bracket-drawer Panel, Lh		Appelez-nous	-
NI	316001763		Wiring Harness,surface Element ,w/ind Light No.51		Appelez-nous	-
NI	316045000		Clip-wiring Harness,retainer ,green ,main Top		Appelez-nous	-
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
