SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

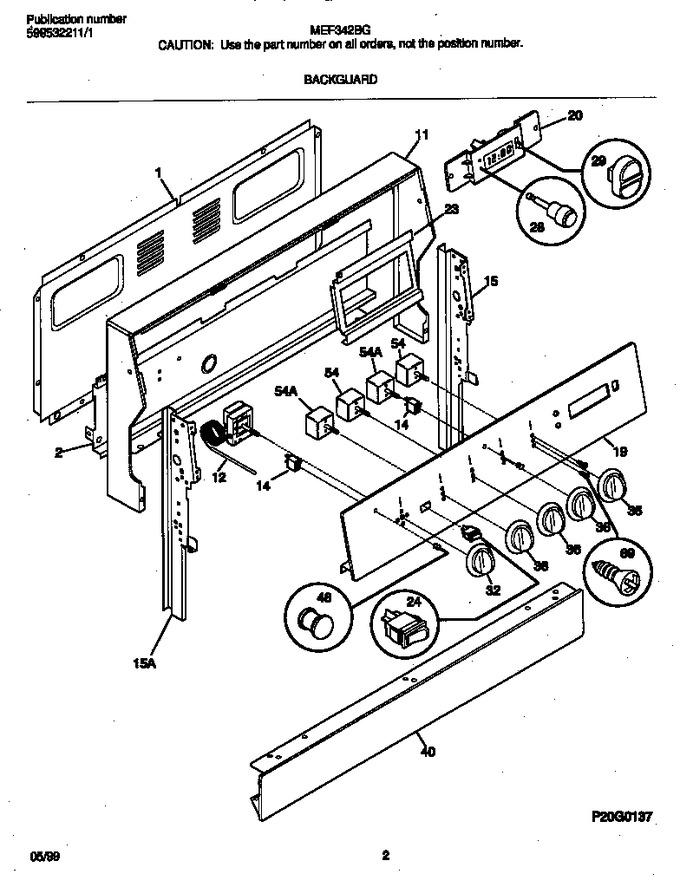

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
12	316032403		Thermostat		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316076596		Panel-backguard,metal		Appelez-nous	-
20	316113200		Clock-timer		Appelez-nous	-
23	316079002		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316109600		Knob-thermostat		Appelez-nous	-
36	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
40	316064009		Panel-manifold,black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
*14680	316002675		Diagram-wiring		Appelez-nous	-
*14681	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*14682	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*14683	316112500		Template, Anti-tip Bracket				$ 3.55
*14684	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
29A	5303272305		Button-selector, Clock/timer, Black				$ 38.80
29B	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
