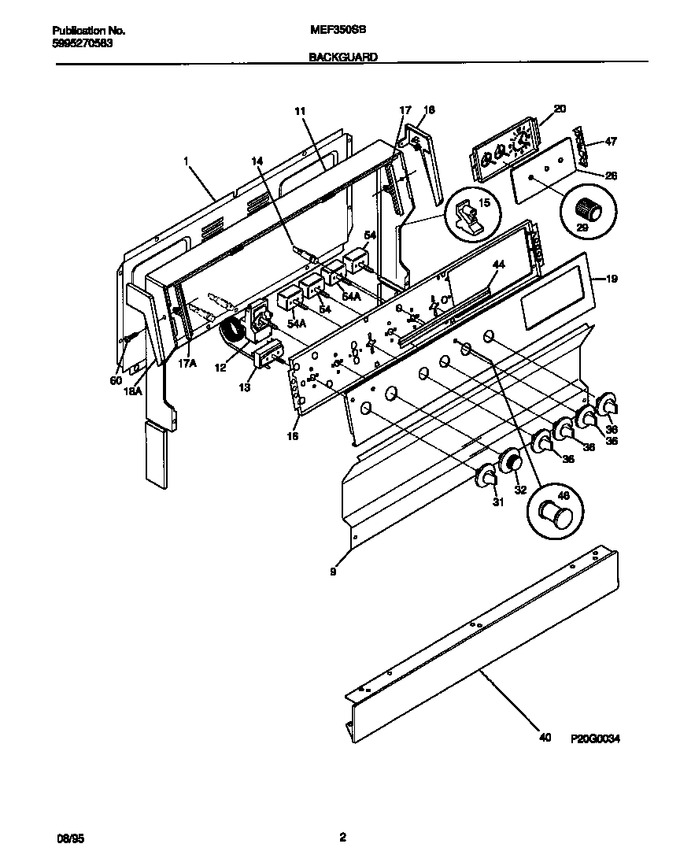

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	3204755		Trim, Wrapper		Appelez-nous	-
12	3204581		Thermostat-oven		Appelez-nous	-
13	316023200		Switch-selector				$ 176.44
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
17	3204754		Trim-glass Retainer,rh		Appelez-nous	-
18	5303272308		End Cap,black ,rh		Appelez-nous	-
19	316034540		Panel-backguard, Black		Appelez-nous	-
20	3201694		Clock/timer, Analog 3 Stem		Appelez-nous	-
26	3201695		Lens-clock, Glass		Appelez-nous	-
29	316029000		Knob-clock		Appelez-nous	-
31	316016923		Knob-selector		Appelez-nous	-
32	316016823		Knob Thermostat		Appelez-nous	-
36	316016902		Knob-control, Infinite Sw		Appelez-nous	-
40	316009222		Panel-manifold		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065800		Lens, Light/lamp, Indicator, Amber		Appelez-nous	-
47	3201700		Retainer, Clock Glass, (2)		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
60	5303289970		Screw-end Cap Mtg,oval Head ,6-20ab X 1/2		Appelez-nous	-
*31240	3204745		Bushing-ctrl Shaft		Appelez-nous	-
*31241	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*31242	5303272555		Clip-backguard		Appelez-nous	-
*31243	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*31244	316067000		Bezel, Nameplate, Black		Appelez-nous	-
17A	3204753		Trim-glass Retainer,lh		Appelez-nous	-
18A	5303272307		End Cap,black ,lh		Appelez-nous	-
54A	5303285143		Switch, 8`` Element		Appelez-nous	-
