SELECT A DIAGRAM

01 - Cover


02 - Backguard

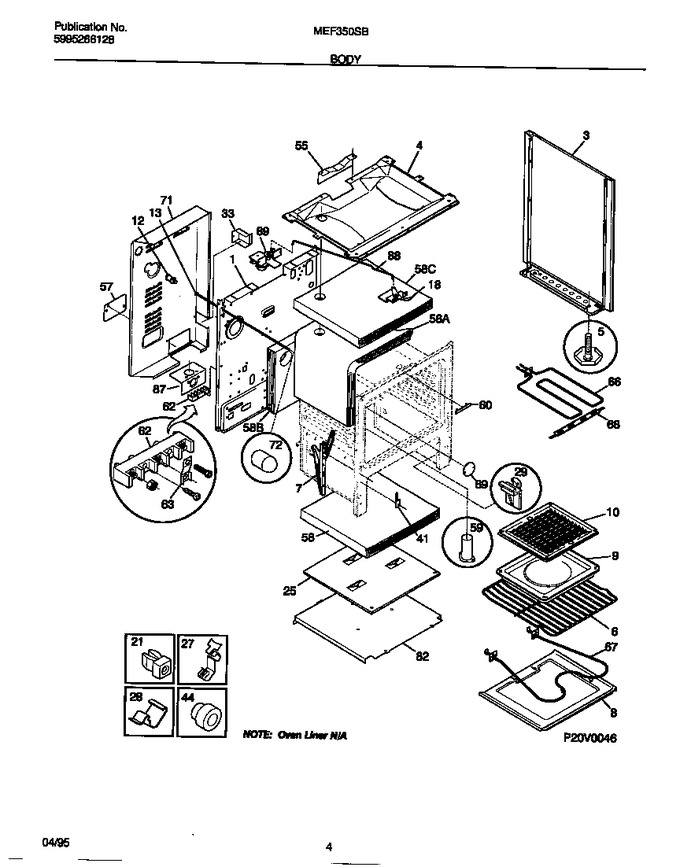

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029405		Back-main		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
3	5303269519		Panel, Bodyside, White, Lh (not-illustrated)		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	316073900		Insert-broiler Pan		Appelez-nous	-
12	316027700		Switch-oven Light/door		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3051367		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
33	3203582		Shield-rear Wall		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
55	3051368		Shield-flue Cover		Appelez-nous	-
57	3203405		Cover-access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
58	3200833		Insulation, Oven Wrapper		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
58	3131304		Insulation, Oven Top		Appelez-nous	-
59	316073600		Tube-oven Vent		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5303212739		Plate-ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake   (Replaces: 3203534)			Immediately	$ 42.36
68	3051373		Support-element		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
71	3203549		Shield-rear Wall, Lower		Appelez-nous	-
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
82	3200825		Shield, Oven Bottom		Appelez-nous	-
87	5303206618		Bracket-cable Mtg		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028100		Motor-latch/lock		Appelez-nous	-
*68765	316001155		Harness-wiring, Main		Appelez-nous	-
*68766	316075400		Shield-terminal Block		Appelez-nous	-
*68767	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*68768	5303051099		Nut, Hex, 10-32		Appelez-nous	-
*68770	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
3A	3200834		Shield, Heat, Body Side (not Illustrated)		Appelez-nous	-
3B	3200846		Fastener-edge Mtg (not Illustrated)		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	3931015		Anti-tip Kit (not Illustrated)		Appelez-nous	-
5C	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14

    View Diagram in Separate Window       Print Part List
