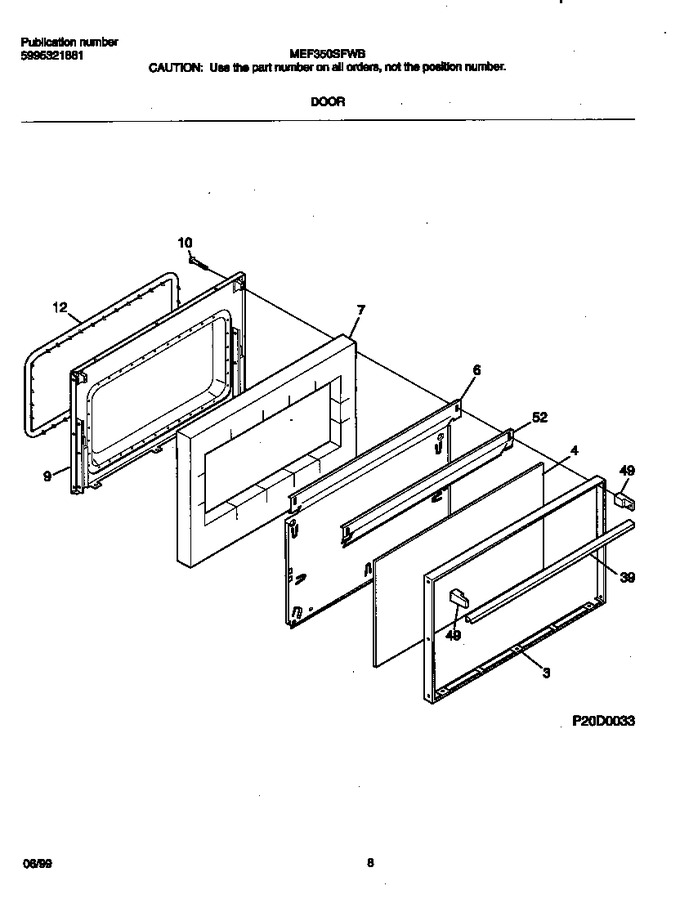

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316076404		Insulation, Oven Door		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
39	316020204		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*63542	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*63543	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*63544	316065301		Plate Warning/caution		Appelez-nous	-
*63545	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*63546	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*63547	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*63548	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*63549	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*63550	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
