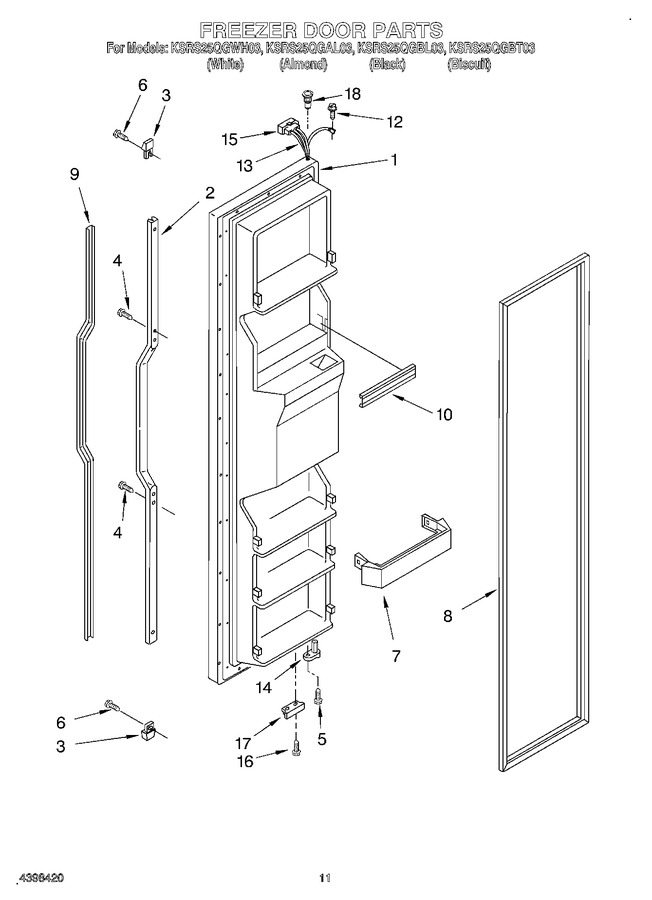

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204344N		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2204344B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2204344T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2204344W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194777T		Retainer, Insert (biscuit)		Appelez-nous	-
2	2194777W		Retainer, Insert (white)		Appelez-nous	-
2	2194777N		Retainer, Insert (almond)		Appelez-nous	-
2	2194777B		Retainer, Insert (black)		Appelez-nous	-
3	2194778B		End Cap (2) (black)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
3	2194778T		End Cap (2) (biscuit)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	WP3400852		Screw   (Replaces: 3400852)				$ 8.86
7	2171070		Shelf Bin (4)		Appelez-nous	-
8	2159082		Door Gasket, Magnetic (service) (black)				$ 284.99
8	2159074		Door Gasket, Magnetic (service) (mist Beige)				$ 279.17
9	2173829		Insert, Handle (black)		Appelez-nous	-
9	2186863T		Insert, Handle (biscuit)		Appelez-nous	-
9	2173828		Insert, Handle (almond)		Appelez-nous	-
9	2173825		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 20.80
12	WP489128		Screw   (Replaces: 488500)				$ 9.79
13	2180229		Wire Harness				$ 73.70
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2195950		Bracket, Door Stop (chrome)				$ 5.84
17	2195952		Bracket, Door Stop (black)		Appelez-nous	-
18	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 6.98
