SELECT A DIAGRAM

01 - Cover

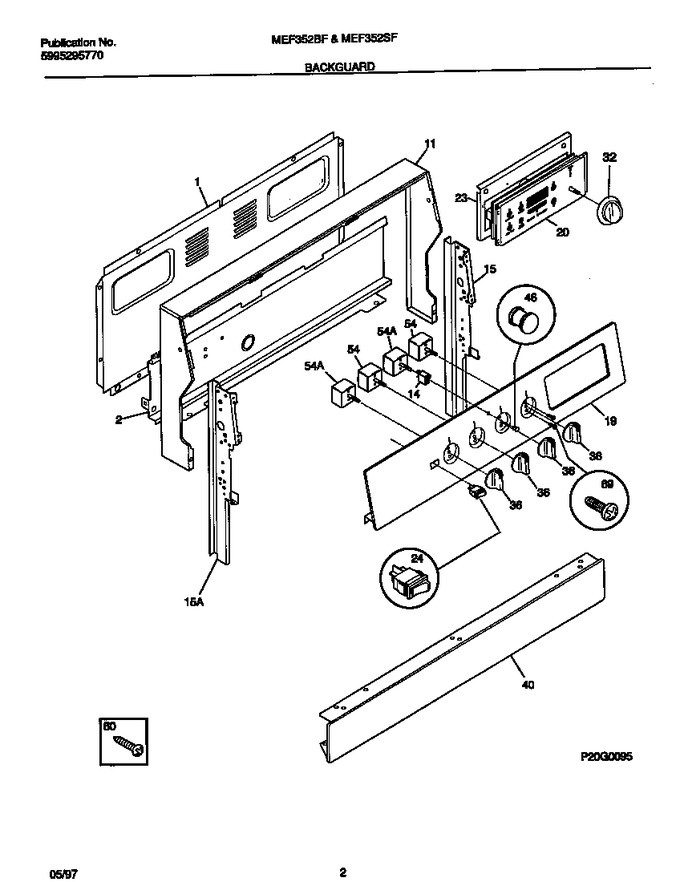

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061841		Trim-wrapper, Black		Appelez-nous	-
14	316022503		Light/lamp, Indicator, Yellow, 250 V, (2)			Immediately	$ 70.16
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316076564		Panel-control, Metal		Appelez-nous	-
23	316100400		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	316101301		Knob-thermostat		Appelez-nous	-
36	316015203		Knob-control, (6)		Appelez-nous	-
40	316062329		Panel, Manifold, Black		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
54	5303935086		Switch-6`` Element, (2)   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*07840	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*07841	316096900		Bezel,nameplate ,black				$ 15.38
20A	316101103		Clock/timer, Trimline, Dial 3				$ 299.30
20B	316101508		Overlay-clock (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
