SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

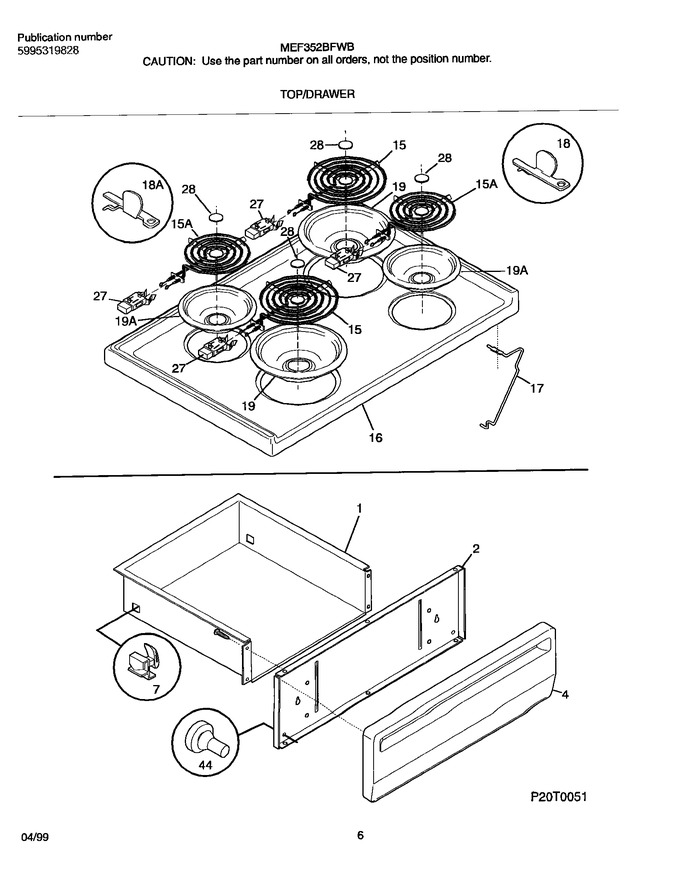

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
44	3131903		Bumper				$ 55.36
18A	5303273063		Hinge-main Top (lh)				$ 48.41
19A	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
F15	316442300		Element-surface,large/8 Inch   (Replaces: 5303015715)			Immediately	$ 59.16
F15A	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
NI	316001725		Harness-wiring, Surface Element		Appelez-nous	-
NI	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
NI	5308014215		Screw,6-20 X 5/16 ,(4)				$ 2.28
NI	316519700		Screw, Cup Pt, 8-18 X 3/8 Hinge, Ind Lght Brkt, Manifol   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
