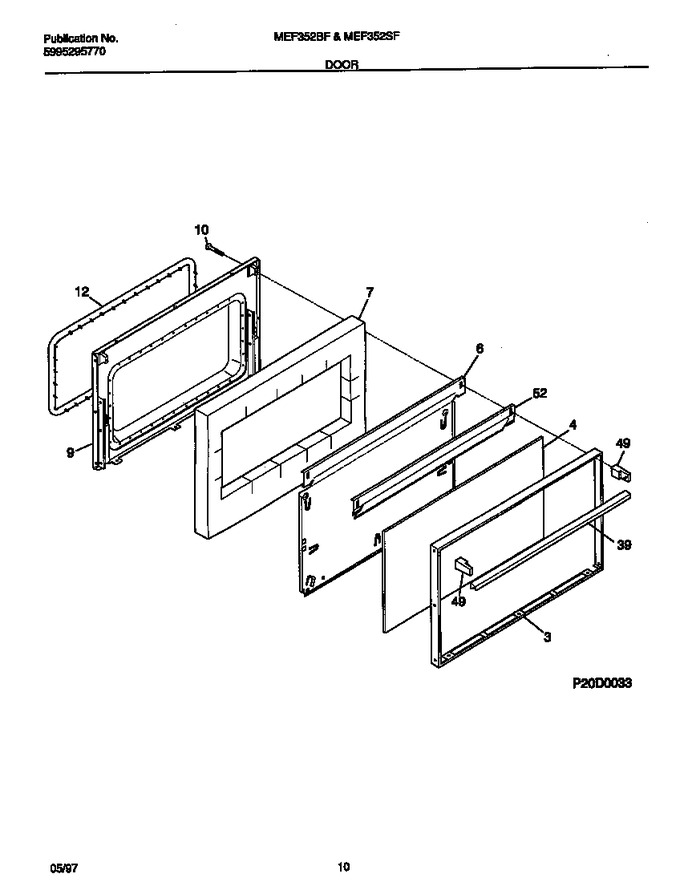

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316076404		Insulation, Oven Door		Appelez-nous	-
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
49	3016755		End Cap, Black, (2)		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*07857	316065301		Plate Warning/caution		Appelez-nous	-
*07858	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*07859	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*07860	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*07861	5303285179		Screw-oven Door, Wafer Head, 8-32t X 1/2, Black				$ 13.46
