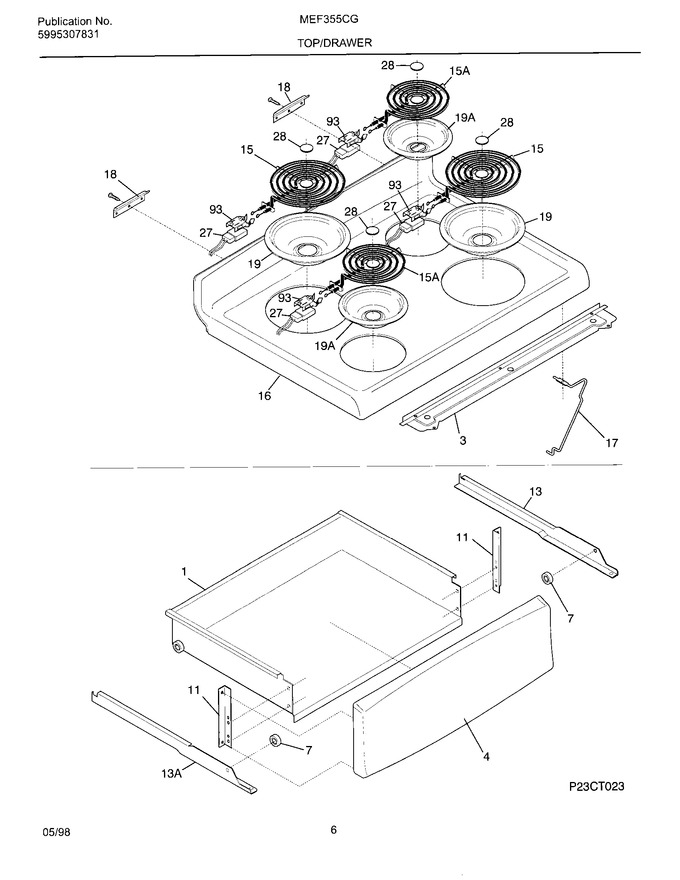

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144311		Support-main Top		Appelez-nous	-
4	318044303		Panel-drawer,black				$ 71.30
7	5303324497		Spacer		Appelez-nous	-
11	318107500		Bracket-support,drawer ,(2)				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	316442303		Element-surface, 2400w   (Replaces: 318112300)			Immediately	$ 207.45
16	318065733		Maintop & Glass Assy,glass		Appelez-nous	-
17	318119100		Rod-maintop Support,(2)				$ 6.67
18	318074400		Hinge-main Top		Appelez-nous	-
19	A316222301		Pan-surface Element,large,blac   (Replaces: 318067002)			Immediately	$ 12.53
27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122501		Bracket-terminal Block		Appelez-nous	-
	5303131801		Screw, 10 X 3/8		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
15A	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
19A	A316222201		Pan-surface Element,small,blac   (Replaces: 318067003)			Immediately	$ 14.64
