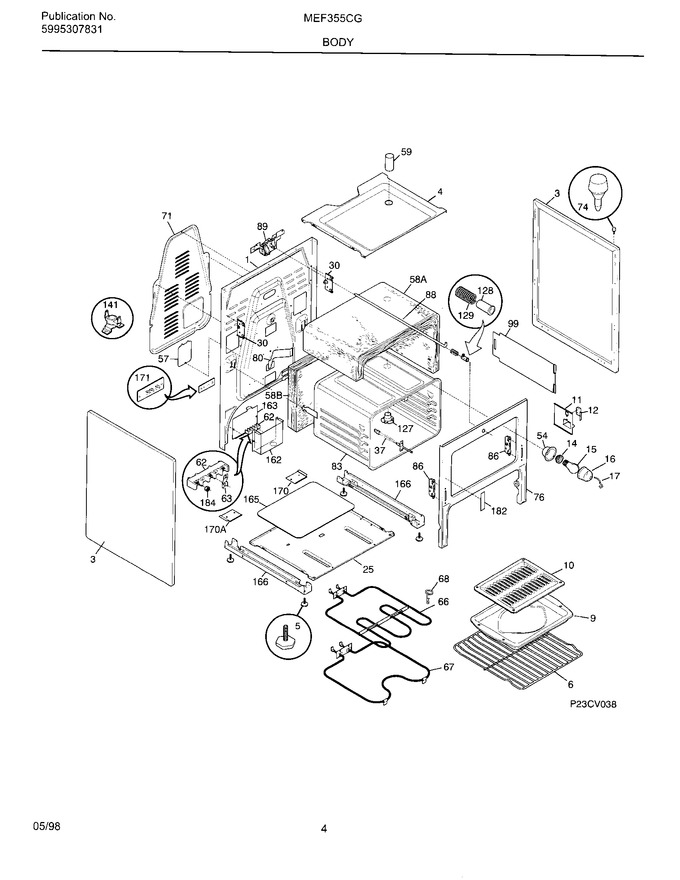

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318108100 | Back-main |
|
- | |||||
| 3 | 318025601 | Panel-bodyside,white |
|
- | |||||
| 4 | 318073801 | Burner Box |
|
- | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 11 | 318086100 | Bracket-light Switch |
|
- | |||||
| 12 | 318089800 | Switch-door |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Clip |
|
- | |||||
| 25 | 318108700 | Shield-heat,lower |
|
- | |||||
| 30 | 318110800 | Bracket-hinge,main Top ,(2) |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111201) |
|
Immediately | $ 61.23 | ||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318036500 | Cover-access |
|
$ 2.04 | |||||
| 59 | 318072517 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 63 | 5303310517 | Plate,ground Strap |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 71 | 318086600 | Cover Wire |
|
- | |||||
| 74 | 318141900 | Bumper-bodyside |
|
- | |||||
| 76 | 318108502 | Frame-front,wheels Incl |
|
- | |||||
| 80 | 5303324473 | Bracket-oven |
|
- | |||||
| 83 | 318109405 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 318118902 | Rod-latch |
|
$ 8.34 | |||||
| 89 | 318095900 | Motor-latch Assy |
|
- | |||||
| 99 | 318126101 | Support-side |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| 162 | 318096401 | Connection Box |
|
- | |||||
| 163 | 318135802 | Cover Connection Box |
|
- | |||||
| 165 | 318003100 | Shield-plate |
|
- | |||||
| 166 | 318111000 | Support Base |
|
- | |||||
| 170 | 3203575 | Anti-tip Bracket |
|
- | |||||
| 171 | 318111202 | Plate-connecting |
|
- | |||||
| 182 | 316042300 | Plate,warning |
|
- | |||||
| 184 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| 318120704 | Switch-latch |
|
- | ||||||
| 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | |||||
| 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | ||||||
| 5303131801 | Screw, 10 X 3/8 |
|
- | ||||||
| 318120702 | Switch-latch |
|
$ 111.67 | ||||||
| 170A | 3203576 | Anti-tip Bracket |
|
- | |||||
| 58A | 5303324419 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 5303324420 | Insulation,oven Back&under |
|
- |
