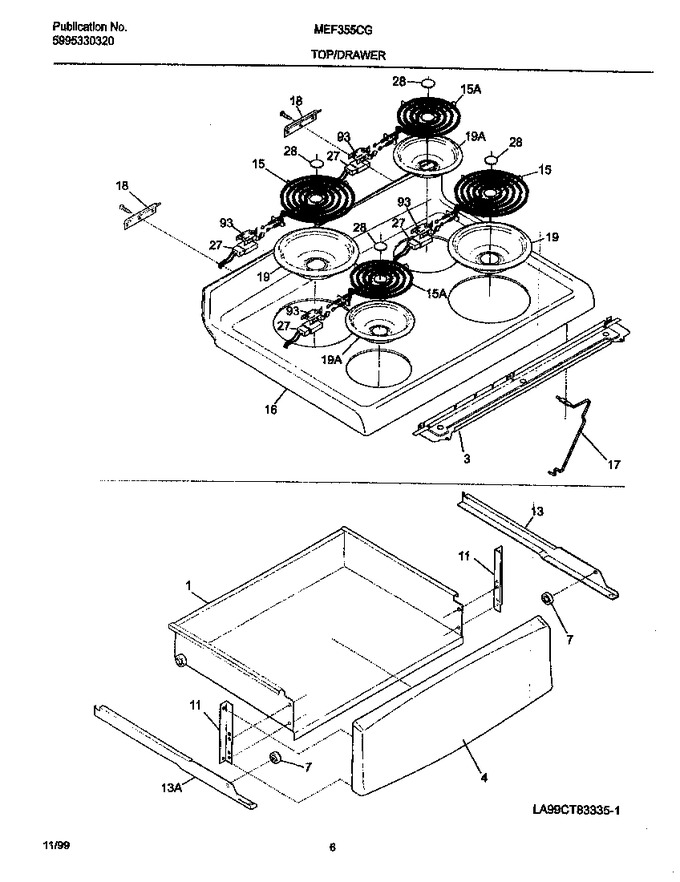

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144320		Support, Maintop		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support,drawer ,(2)				$ 21.85
13	318018101		Channel-drawer,lh				$ 63.11
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	316442303		Element-surface,large-8`` ,2   (Replaces: 318112300)			Immediately	$ 207.45
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
16	318065731		Main Top,white		Appelez-nous	-
17	318119100		Rod-maintop Support,(2)				$ 6.67
18	318074400		Hinge-main Top,(2)		Appelez-nous	-
19	318067042		Pan-surface Element,small ,gray		Appelez-nous	-
19	318067052		Pan-surface Element,large ,gray		Appelez-nous	-
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122501		Bracket-terminal Block		Appelez-nous	-
*34405	5303131801		Screw, 10 X 3/8		Appelez-nous	-
