SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

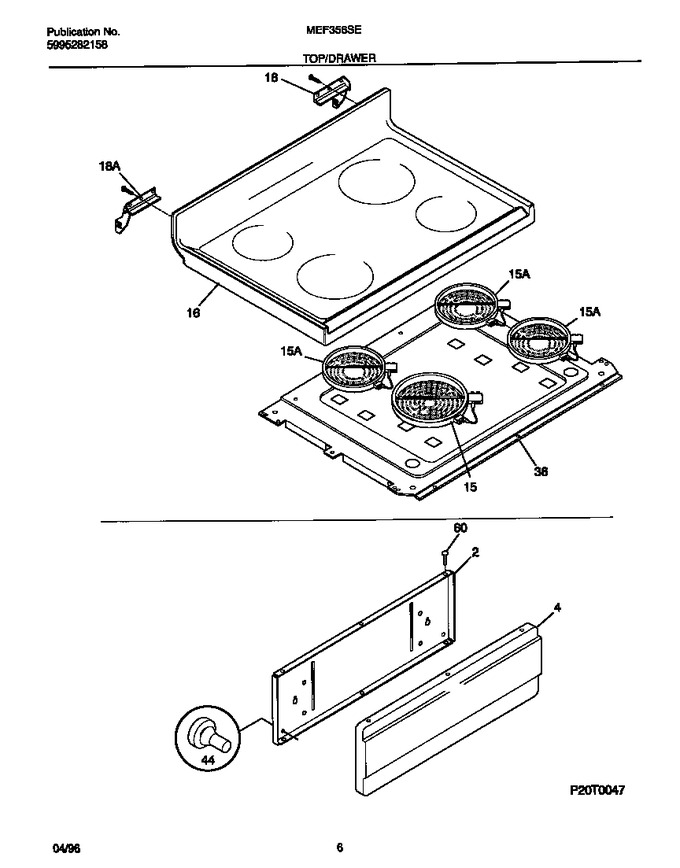

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	3051201		Panel-dummy, White		Appelez-nous	-
15	318198834		Element-surface, 2100 W, Large/8 Inch   (Replaces: 316010204)				$ 205.36
15	318198817		Element-surface, 1200 W, Small/6 Inch   (Replaces: 316010203)			Immediately	$ 192.78
16	316035528		Main Top, Glass, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
36	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-
36	316033610		Panel-element Mtg, Glass Top		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*50766	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*50767	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*50768	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*50769	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*50770	5309951550		Cleaner-cooktop		Appelez-nous	-
*50771	316001733		Harness-top Elements		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
